Imtra Marine Products

Imtra Less Than 3" LED Down and Spotlights on this webpage (FREE SHIPPING OVER $100*):
Hatteras Recessed PowerLED Downlights
Hatteras Surface-Mount PowerLED Downlights
For more information regarding LED Lighting

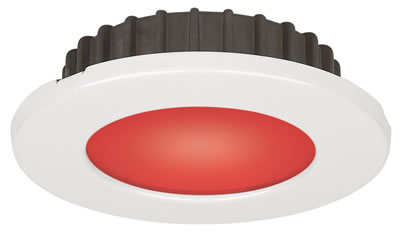

Hatteras White Recessed PowerLED Red Downlights by Imtra Marine Lighting

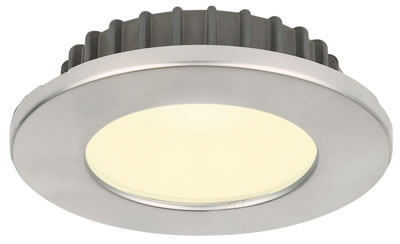

Hatteras Satin Nickel Recessed PowerLED Warm White Downlights by Imtra Marine Lighting

Click for larger image

Imtra Marine Lighting

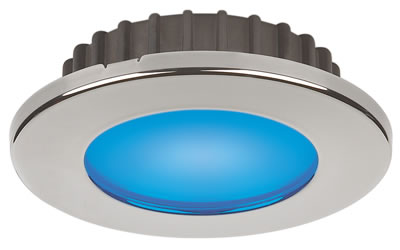

Hatteras Stainless Steel Recessed PowerLED Blue Downlights by Imtra Marine Lighting

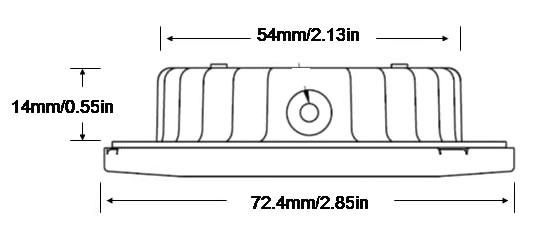

Hatteras Recessed PowerLED Downlights Diagram by Imtra Marine Lighting

HATTERAS RECESSED POWER LED DOWN LIGHTS BY IMTRA The Hatteras Recessed PowerLED Down Light is a high flux LED spot with wide-flood light beam characteristics and ultra slim trim ring profile, making it ideal for low to medium ceiling heights or efficient under-cabinet lighting. Its shallow housing allows placement within ceilings that have limited air space behind. The Hatteras PowerLED is also completely sealed and is a popular choice for exterior mounting in FRP hard-tops for nighttime cockpit and helm illumination. A built-in dimmer interface allows for effortless touch-control dimming using the IML PWM Dimmer. Available in Warm White, Cool White, Red, or Blue LEDs. Trim Rings are available in a Brushed Stainless Steel, Polished Stainless Steel, or White finish.. Please read regarding Maryland, Massachusetts, and Washington shipments sales tax. Made in USA.

    Features & Benefits: Low Profile Design For Areas With Limited Ceiling Space · Built-In Current-Controlled Driver With Dimming Interface · No Radiated Heat · Low Power Consumption · Solid-State Circuitry (Shock/Vibration Proof) · Multi-Voltage (12V or 24V Systems) · Completely Sealed LED Sub-Assembly · Corrosion-Proof Trim Ring · Choice of LED Colors · Photometric Chart · Installation Instructions
US$75.95 / EACH
  • Trim Ring Finish: Polished Stainless Steel, Brushed Stainless Steel, Satin Nickel or White
  • Lighting: Cool White, Warm White, Red or Blue
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Glass
  • Trim Ring Diameter: 2.85" (72mm)
  • Cut-Out Diameter: 2.13" (54mm)
  • Recessed Depth: 0.55" (14mm)
  • Voltage: 10-30VDC
  • Power Consumption: 3.2W
  • LED: 1 x 3W High Flux LED with integrated LED driver
  • Beam Angle (FWHM): 83° Warm White / 84° Cool White / 80° Red / 85° Blue
  • Correlated Color Temperature (CCT): 2800K Warm White / 6400K Cool White
  • Color Rendering Index (CRI): 83 Warm White / 78 Cool White
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Dimmer Module: See ILIM80110
  • Mounting Method: Screw-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 1.0 lbs.
  • Part Number: ILIM31306 / ILIM31307 / ILIM31308 / ILIM31316 / ILIM31317 / ILIM31318 / ILIM31320 / ILIM31321 / ILIM31322 / ILIM31330 / ILIM31331 / ILIM31332

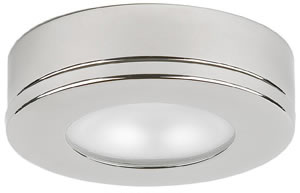

  • Hatteras Stainless Steel Surface PowerLED Cool White Downlights by Imtra Marine Lighting

    Shown in
    Stainless Steel
    Click for larger image

    Imtra Marine Lighting

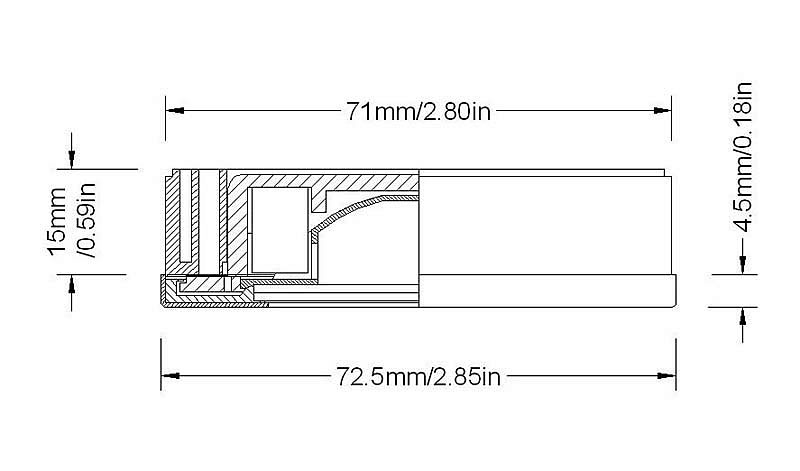

    Hatteras Surface PowerLED Downlights Diagram by Imtra Marine Lighting

    HATTERAS SURFACE-MOUNT LED DOWN LIGHTS BY IMTRA The 3-Inch Hatteras Surface PowerLED Downlights are a high flux LED spot with wide-flood light beam characteristics. The surface-mount model is a "puck" style light for applications with solid ceilings or for under-cabinet lighting. A built-in dimmer interface allows for effortless touch-control dimming using the IML PWM Dimmer. Available in Warm White, Cool White, Red or Blue LED Lights with White or Stainless Steel Trim Rings. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Low Profile Design For Areas With Limited Ceiling Space · Built-In Current-Controlled Driver With Dimming Interface · No Radiated Heat · Low Power Consumption · Solid-State Circuitry (Shock/Vibration Proof) · Multi-Voltage (12V or 24V Systems) · Completely Sealed LED Sub-Assembly · Corrosion-Proof Trim Ring · Choice of LED Colors · Photometric Chart · Installation Instructions
    US$84.95 - $92.95 / EACH
  • Trim Ring Finish: Stainless Steel or White
  • Lighting: Warm White, Cool White, Red, Blue
  • Trim Ring Material: 304 Stainless Steel
  • Lens Material: Frosted Glass
  • Trim Ring Diameter: 2.85" (72mm)
  • Cut-Out Diameter: 2.86" (73mm)
  • Recessed Depth: 0.79" (20mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): 3.2W (Red: 1.6W)
  • LED Engine: 1 x 3W High Flux LED with integrated LED driver
  • Beam Angle (FWHM): 83° Warm White / 84° Cool White / 80° Red / 85° Blue
  • Correlated Color Temperature (CCT): 2800K Warm White / 6400K Cool White
  • Color Rendering Index (CRI): 83 Warm White / 78 Cool White
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Safety Standards Compliance: CE-EMC, UL 1598, UL1149, UL 8750, CSA C22.2#250.0
  • Dimmer Module: See ILIM80110
  • Mounting Method: Screw-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 1.0 lbs.
  • Part Number: ILIM31406 / ILIM31407 / ILIM31416 / ILIM31417 / ILIM31420 / ILIM31421 / ILIM31430 / ILIM31431
