Imtra Marine Products

Imtra Larger than 5" LED Down Lights on this webpage (FREE SHIPPING OVER $100*):
Avalon 155 PowerLED Down Lights
Avalon 155 PowerLED Bi-Color Down Lights
Tacoma 155 PowerLED Down Lights
Tacoma 155 PowerLED Bi-Color Down Lights
Tacoma 180 PowerLED Down Lights
Tacoma 180 PowerLED Bi-Color Down Lights
Gibraltar PowerLED Dome Lights
Gibraltar PowerLED Bi-Color Dome Lights with 3-Way Switch
Cabin Anne LED Dome Lights
For more information regarding LED Lighting

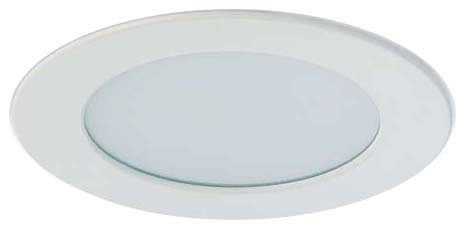

White Avalon 155 PowerLED Down Lights by Imtra Marine Lighting

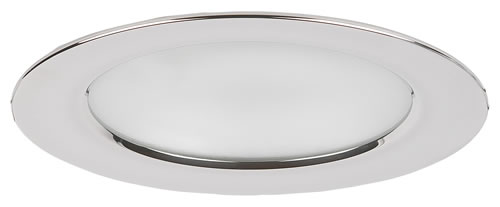

Stainless Steel Avalon 155 PowerLED Down Lights by Imtra Marine Lighting

Click for larger image

Imtra Marine Lighting

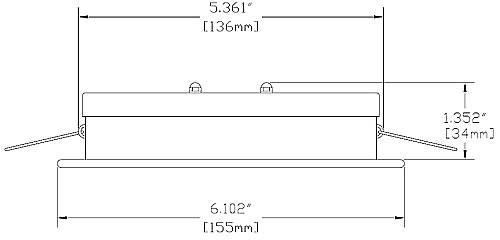

Avalon 155 PowerLED Down Light Diagram by Imtra Marine Lighting

AVALON 155 POWER LED DOWN LIGHTS BY IMTRA The Avalon 155 PowerLED Down Light is one of the most popular downlights. It's 6" diameter trim ring sheds lots of light, yet sits so flush with the overhead that they disappear when not lit. The Avalon LED fixture, available in two sizes and two LED colors, can be used for both interior and exterior applications while matching the LED color (Kelvin temperature) with any other Imtra PowerLED products. With it's high luminous flux light output, this LED fixture becomes the perfect choice for any install. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

    Features & Benefits: All stainless steel housing · Attractive thin bezel profile · Integrated drive electronics · PWM dimming interface · Convenient self-adjusting mounting springs · Photometric Chart · Installation Instructions
US$179.95 / EACH
  • Trim Ring Finish: White or Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Tempered Sanded Glass
  • Trim Ring Diameter: 6.102" (155mm)
  • Cut-Out Diameter: 5.361" (136mm)
  • Recessed Depth: 1.352" (34mm)
  • Voltage: 10-30VDC
  • Power Consumption: 5.5W
  • LEDs: 2 x 3W Cree LEDs - Warm or Cool White
  • Beam Angle (FWHM): 83°
  • Light Output (Lumens): 183 Lumens
  • Correlated Color Temperature (CCT): 2800K Warm, 6400K Cool
  • Color Rendering Index (CRI): 83 Warm, 78 Cool
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Safety Standards Compliance: CE-EMC, UL 1598, UL 8750, CSA C22.2#250.0
  • Dimmer Module: See ILIM80110
  • Mounting Method: Spring-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 0.5 lbs.
  • Part Number: ILIM10400 / ILIM10401 / ILIM10410 / ILIM10411
  • White Avalon 155 PowerLED Bi-Color Down Lights by Imtra Marine Lighting

    Stainless Steel Avalon 155 PowerLED Bi-Color Down Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Avalon 155 PowerLED Bi-Color Down Light Diagram by Imtra Marine Lighting

    AVALON 155 POWER LED BI-COLOR DOWN LIGHTS BY IMTRA The Avalon 155 PowerLED Bi-Color should not be confused with multi-color entertainment lights commonly found on the market. This downlight fixture offers a fully functioning, full-brightness white LED light equal to the standard Avalon 155 in white LED brightness, while also offering an additional low-level “red” secondary color for night-time navigation or general safety lighting. Typical installations include down lighting for main salons or above helm stations. The white LED color is fully dimmable from 0-100% and works with most off-the-shelf momentary switches (see specifications below for a link to the dimmer module). A 3 position switch will allow you to switch from white to red (or off). Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: All stainless steel housing · Attractive thin bezel profile to match Avalon 105 and Ventura models · Bi-color design combining a fully-dimmable white LED with a secondary color · Convenient self-adjusting mounting springs · Photometric Chart · Installation Instructions
    US$209.95 / EACH
  • Trim Ring Finish: White or Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Tempered Sanded Glass
  • Trim Ring Diameter: 6.102" (155mm)
  • Cut-Out Diameter: 5.361" (136mm)
  • Recessed Depth: 1.18" (30mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): Warm White: 5.5W Red: <2.5W
  • LEDs: Two (2) 3W Warm White Cree LEDs and Two (2) Red Rebel LEDs
  • Beam Angle (FWHM): 83°
  • Light Output (Lumens): 183 lumens
  • Correlated Color Temperature (CCT): 2800K
  • Color Rendering Index (CRI): 83
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Integral Switch: No
  • Dimmer Module: See ILIM80110
  • Mounting Method: Spring-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 0.5 lbs.
  • Part Number: ILIM10440 / ILIM10441

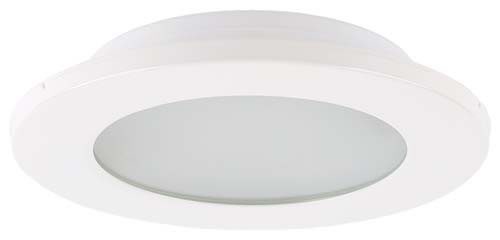

  • White Tacoma 155 PowerLED Down Lights by Imtra Marine Lighting

    Stainless Steel Tacoma 155 PowerLED Down Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

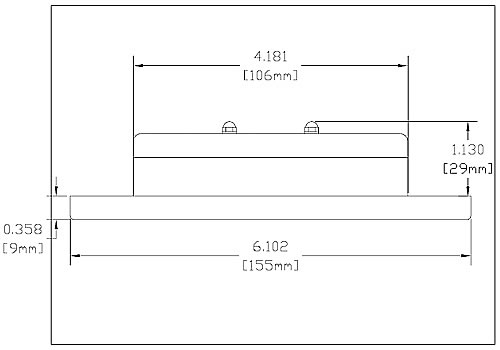

    Tacoma 155 PowerLED Down Light Diagram by Imtra Marine Lighting

    TACOMA 155 POWER LED DOWN LIGHTS BY IMTRA The Tacoma 155 PowerLED is one of the latest additions to Imtra's advanced LED solution product range. This 155mm (6") recessed fixture, available in either cool white or warm white, screw-mounts to any fiberglass hard-top or interior headliner with ease, making it the ultimate interior and exterior selection. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Screw-mount installation · Double gasket seals for superior water resistance · Stainless steel or white trim ring · Tempered sanded lens · Suitable for inflammable surfaces · Installation Instructions
    US$184.95 / EACH
  • Trim Ring Finish: White or Stainless Steel
  • Trim Ring Material: White Lacquered Stainless Steel (RAL9010)
  • Lens Material: Tempered Sanded Glass
  • Trim Ring Diameter: 6.102" (155mm)
  • Cut-out Diameter: 4.181" (106mm)
  • Recessed Depth: 1.130" (29mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): 5.5W
  • LEDs: Two (2) 3W Cree LED, Warm or Cool
  • Beam Angle (FWHM): 83°
  • Correlated Color Temperature (CCT): 2800K Warm, 6400K Cool
  • Color Rendering Index (CRI): 83 Warm, 78 Cool
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Safety Standards Compliance: CE-EMC, UL 1598, UL1149, UL 8750, CSA C22.2#250.0
  • Dimmer Module: See ILIM80110
  • Mounting Method: Spring-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 0.5 lbs.
  • Part Number: ILIM10600 / ILIM10601 / ILIM10610 / ILIM10611
  • White Tacoma 155 PowerLED Bi-Color Down Lights by Imtra Marine Lighting

    Stainless Steel Tacoma 155 PowerLED Bi-Color Down Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Tacoma 155 PowerLED Bi-Color Down Light Diagram by Imtra Marine Lighting

    TACOMA 155 POWER LED BI-COLOR DOWN LIGHTS BY IMTRA The Tacoma 155 PowerLED Bi-Color Down Light fixture should not be confused with multi-color entertainment lights commonly found on the market. This downlight fixture offers full-brightness white LED light equal in brightness to the standard Tacoma 155 in white LED model, but with the addition of a low-level “red” secondary color for night-time navigation or general safety lighting. Typical installations include cockpit overhangs or down lighting above helm stations. The white LED color is fully dimmable from 0-100% and works with most off-the-shelf momentary switches (see specifications below for a link to the dimmer module). A remote mounted 3-position switch will allow you to switch from white to red (or off). Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Low power consumption · No radiated heat · Dual LED color operation · Constant current driver with dimming interface · Solid glass frosted lens · Double gaskets for splash-proof protection · Installation Instructions
    US$209.95 / EACH
  • Trim Ring Finish: White, Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Glass
  • Trim Ring Diameter: 6.102" (155mm)
  • Cut-out Diameter: 4.181" (106mm)
  • Recessed Depth: 1.130" (29mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): Warm or Cool White: 5.5W Red or Blue: <2.5W
  • LEDs: Two (2) 3W Cree LEDs Warm or Cool and Two (2) Rebel LEDs Red or Blue
  • Beam Angle (FWHM): 83° (white)
  • Correlated Color Temperature (CCT): 2800K Warm, 6400K Cool
  • Color Rendering Index (CRI): 83 Warm, 78 Cool
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protection: Spikes/Transient Protection up to 200V
  • Safety Standards Compliance: CE-EMC, UL 1598, UL1149, UL 8750, CSA C22.2#250.0
  • Dimmer Module: See ILIM80110
  • Mounting Method: Spring-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 0.5 lbs.
  • Part Number: ILIM10640 / ILIM10641 / ILIM10650 / ILIM10651 / ILIM10670 / ILIM10671
  • White Tacoma 180 PowerLED Down Lights by Imtra Marine Lighting

    Stainless Steel Tacoma 180 PowerLED Down Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

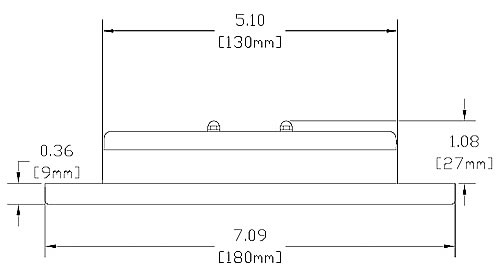

    Tacoma 180 PowerLED Down Light Diagram by Imtra Marine Lighting

    TACOMA 180 POWER LED DOWN LIGHTS BY IMTRA The Tacoma 180 PowerLED Down Light is one of the latest additions to Imtra's advanced LED solution product range. This 180mm (7") recessed fixture, available in either cool white or warm white, screw-mounts to any fiberglass hard-top or interior headliner with ease, making it the ultimate interior and exterior selection. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Screw-mount installation · Double gasket seals for superior water resistance · Stainless steel or white trim ring · Tempered sanded lens · Suitable for inflammable surfaces · Installation Instructions
    US$184.95 / EACH
  • Trim Ring Finish: White, Stainless Steel
  • Trim Ring Material: White Lacquered Stainless Steel (RAL9010)
  • Lens Material: Tempered Sanded Glass
  • Trim Ring Diameter: 7.09" (180mm)
  • Cut-Out Diameter: 5.10" (130mm)
  • Recessed Depth: 1.08" (27mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): 5.5W
  • LEDs: Two (2) 3W Cree LEDs Warm or Cool
  • Beam Angle (FWHM): 83° Warm, 82° Cool
  • Correlated Color Temperature (CCT): 2800K
  • Color Rendering Index (CRI): 83
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Safety Standards Compliance: CE-EMC, UL 1598, UL 8750, CSA C22.2#250.0
  • Dimmer Module: See ILIM80110
  • Mounting Method: Spring-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 0.5 lbs.
  • Part Number: ILIM10700 / ILIM10701 / ILIM10710 / ILIM10711
  • White Tacoma 180 PowerLED Bi-Color Down Lights by Imtra Marine Lighting

    Stainless Steel Tacoma 180 PowerLED Bi-Color Down Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Tacoma 180 PowerLED Bi-Color Down Light Diagram by Imtra Marine Lighting

    TACOMA 180 POWER LED BI-COLOR DOWN LIGHTS BY IMTRA The Tacoma 180 PowerLED Bi-Color Downlight fixture should not be confused with multi-color entertainment lights commonly found on the market. This wide diameter downlight fixture is well suited for larger yachts. It offers full-brightness white LED light equal in brightness to the standard Tacoma 180 in white LED model, but with the addition of a low-level “red” secondary color for night-time navigation or general safety lighting. Typical installations include cockpit overhangs or down lighting above helm stations. The white LED color is fully dimmable from 0-100% and works with most off-the-shelf momentary switches (see specifications below for a link to our dimmer module). A remote mounted 3-position switch will allow you to switch from white to red (or off). To see recommendations on wiring for all functions, see our installation instructions download on the side menu bar. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Low power consumption · No radiated heat · Dual LED color operation · Constant current driver with dimming interface · Solid glass frosted lens · Double gaskets for splash-proof protection · Installation Instructions
    US$219.95 / EACH
  • Trim Ring Finish: White or Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Glass
  • Trim Ring Diameter: 7.09" (180mm)
  • Cut-out Diameter: 5.10" (130mm)
  • Recessed Depth: 1.08" (27mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): Warm or Cool White: 5.5W Red or Blue: <2.5W
  • LEDs: Two (2) 3W Warm or Cool White Cree LEDs and Two (2) Red or Blue Rebel LEDs
  • Beam Angle (FWHM): 82° (white)
  • Correlated Color Temperature (CCT): 2800K Warm, 6400K Cool
  • Color Rendering Index (CRI): 83 Warm, 78 Cool
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes/Transient Protection up to 200V
  • Safety Standards Compliance: CE-EMC, UL 1598, UL 8750, CSA C22.2#250.0
  • Dimmer Module: See ILIM80110
  • Mounting Method: Spring-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP65
  • Weight: 0.5 lbs.
  • Part Number: ILIM10740 / ILIM10741 / ILIM10750 / ILIM10751 / ILIM10770 / ILIM10771
  • Gibraltar Stainless Steel PowerLED Dome Light by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Gibraltar Stainless Steel PowerLED Dome Light Diagram by Imtra Marine Lighting

    GIBRALTAR POWER STAINLESS STEEL LED DOME LIGHTS BY IMTRA The Gibraltar Surface-Mount LED Dome Light is an attractive and durable dome light fixture that may be used for general interior illumination or for exterior helm and cockpit illumination. Its stylish, highly polished stainless steel bezel with solid frosted glass makes this fixture a real style point on any vessel large or small. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Simple surface-mount installation · All stainless steel construction · Solid glass frosted lens · Double gaskets for splash-proof protection · Photometric Chart · Installation Instructions
    US$184.95 / EACH
  • Trim Ring Finish: Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Tempered Glass
  • Trim Ring Diameter: 6.53" (166mm)
  • Fixture Height: 1.42" (36mm)
  • Voltage: 10-30VDC
  • Power Consumption: 5.5W
  • LEDs: Two (2)
  • 3W Cree LEDs, Warm or Cool White
  • Beam Angle (FWHM): 84°
  • Light Output (Lumens): 185 Lumens Warm, 232 Lumens Cool
  • Correlated Color Temperature (CCT): 2800K Warm, 6400K Cool
  • Color Rendering Index (CRI): 83 Warm, 78 Cool
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Integral Switch: Yes, one-way toggle
  • Dimmer Module: On/Off toggle switch (optional dimming)
  • Mounting Method: Screw-mount (hardware included)
  • Wire Size: See Chart
  • Ingress Protection: IP55
  • Weight: 0.45 lbs.
  • Part Number: ILIM10501 / ILIM10511
  • Gibraltar Stainless Steel PowerLED Dome Light with 3-Way Switch by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Gibraltar Stainless Steel PowerLED Dome Light with 3-Way Switch Diagram by Imtra Marine Lighting

    GIBRALTAR STAINLESS STEEL POWER LED BI-COLOR DOME LIGHTS WITH 3-WAY SWITCH BY IMTRA The Gibraltar PowerLED Bi-Color Dome Light is a surface-mount dome fixture styled in the classic tradition but powered by a high tech dual function LED engine. This downlight fixture offers a fully functioning, full-brightness white LED light equal to the standard Gibraltar 155 in white LED brightness, while also offering an additional low-level “red” or "blue" secondary color for night-time navigation or general safety lighting. Typical installations include down lighting for main salons, cockpit overhangs, or above helm stations. A built in 3-position switch will allow you to switch from white to secondary color (or off). The white LED may be dimmed from a remote switch when used with the PWM Momentary Digital Dimmer ILIM80110. For details on dimming or general wiring & installation details, please see the Installation Instructions download on the side bar to the right. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Low power consumption · No radiated heat · Dual LED color operation · Constant current driver with dimming interface · Simple surface-mount installation · All stainless steel construction · Solid glass frosted lens · Double gaskets for splash-proof protection · Photometric Chart · Installation Instructions
    US$229.95 / EACH
  • LED Colors: WARM WHITE/RED or COOL WHITE/BLUE
  • Trim Ring Finish: Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Glass
  • Trim Ring Diameter: 6.53" (166mm)
  • Fixture Height: 1.42" (36mm)
  • Voltage: 10-30VDC
  • Beam Angle (FWHM): 84° (White)
  • Correlated Color Temperature (CCT): 2800K (ILIM10541); 6400K (ILIM10544)
  • Color Rendering Index (CRI): 83 (ILIM10541); 78 (ILIM10544)
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes/Transient Protection up to 200V (400mS)
  • Integral Switch: Yes, three-way toggle
  • Dimmer Module: See ILIM80110
  • Mounting Method: Screw-mount (hardware included)
  • Wire Size: See Chart
  • Ingress Protection: IP55
  • Weight: 0.45 lbs.
  • Part Number: ILIM10541 / ILIM10544
  • Cabin Anne Stainless Steel LED Dome Light by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Cabin Anne Stainless Steel LED Dome Light Diagram by Imtra Marine Lighting

    CABIN ANNE STAINLESS STEEL LED DOME LIGHTS WITH 3-WAY SWITCH BY IMTRA The Cabin Anne Stainless Steel LED Dome Light surface-mount fixture has become so popular it is now available in LED! The wide beam LED fixture offers the classic bezel, reliability, and warm white LED color you've come to expect for interior applications, but now with low power consumption. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: Surface-mount design · Models available with or without integrated on/off switch · Integrated LED driver · LED Color - Warm
    US$229.95 / EACH
  • Trim Ring Finish: Stainless Steel
  • Lens Material: Polycarbonate
  • Trim Ring Diameter: 6.5" (165mm)
  • Fixture Height: 1.77" (45mm)
  • Voltage: 10-30VDC
  • Power Consumption: 3.6W
  • LEDs: Three (3) 1W OSRAM PowerLEDs
  • Beam Angle: 140°
  • Electrical Protections: Polarity reversal
  • Integral Switch: No
  • Mounting Method: Screw-mount
  • Wire Size: See Chart
  • Ingress Protection: IP20
  • Classifications: Class III, F-Rated, CE
  • Manufacturer: Cabin-Denmark
  • Weight: 1.0 lbs.
  • Part Number: MC161LED

  • TOP
    FREE SHIPPING OVER $100* Email Questions, Call or Text 1-818-989-2233 We accept Discover, Mastercard, Visa and American Express Shopping Cart Secured by Verisign
