Imtra Marine Products

Imtra LED Dome Lights on this webpage (FREE SHIPPING OVER $100*):
Gibraltar Stainless Steel PowerLED Dome Lights
Gibraltar Stainless Steel PowerLED Bi-Color Dome Lights with 3-Way Switch
Cabin Anne Stainless Steel LED Dome Lights

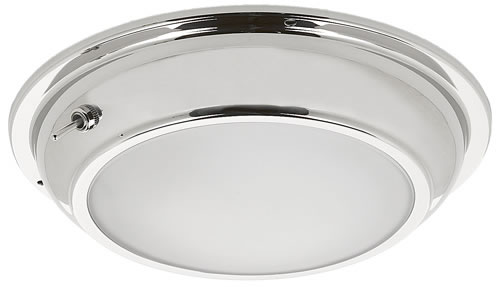

Gibraltar Stainless Steel PowerLED Dome Light by Imtra Marine Lighting

Click for larger image

Imtra Marine Lighting

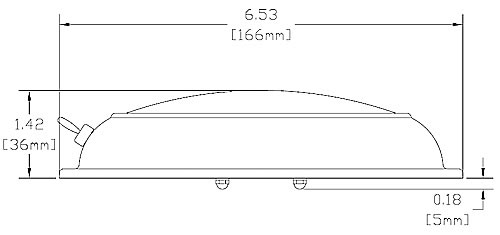

Gibraltar Stainless Steel PowerLED Dome Light Diagram by Imtra Marine Lighting

GIBRALTAR STAINLESS STEEL POWER LED DOME LIGHTS BY IMTRA The Gibraltar Surface-Mount LED Dome Light is an attractive and durable dome light fixture that may be used for general interior illumination or for exterior helm and cockpit illumination. Its stylish, highly polished stainless steel bezel with solid frosted glass makes this fixture a real style point on any vessel large or small. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

    Features & Benefits: Simple surface-mount installation • All stainless steel construction • Solid glass frosted lens • Double gaskets for splash-proof protection • Photometric ChartInstallation Instructions
US$174.95 / EACH
  • Trim Ring Finish: Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Tempered Glass
  • Trim Ring Diameter: 6.53" (166mm)
  • Fixture Height: 1.42" (36mm)
  • Voltage: 10-30VDC
  • Power Consumption: 5.5W
  • LEDs: Two (2)
  • 3W Cree LEDs, Warm or Cool White
  • Beam Angle (FWHM): 84°
  • Light Output (Lumens): 185 Lumens Warm, 232 Lumens Cool
  • Correlated Color Temperature (CCT): 2800K Warm, 6400K Cool
  • Color Rendering Index (CRI): 83 Warm, 78 Cool
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes (up to 200V)/Transient protection
  • Integral Switch: Yes, one-way toggle
  • Dimmer Module: On/Off toggle switch (optional dimming)
  • Mounting Method: Screw-mount (hardware included)
  • Wire Size: See Chart
  • Ingress Protection: IP55
  • Weight: 0.45 lbs.
  • Part Number: ILIM10501 / ILIM10511
  • Gibraltar Stainless Steel PowerLED Dome Light with 3-Way Switch by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    Gibraltar Stainless Steel PowerLED Dome Light with 3-Way Switch Diagram by Imtra Marine Lighting

    GIBRALTAR STAINLESS STEEL POWER LED BI-COLOR DOME LIGHTS WITH 3-WAY SWITCH BY IMTRA The Gibraltar PowerLED Bi-Color Dome Light is a surface-mount dome fixture styled in the classic tradition but powered by a high tech dual function LED engine. This downlight fixture offers a fully functioning, full-brightness white LED light equal to the standard Gibraltar 155 in white LED brightness, while also offering an additional low-level “red” secondary color for night-time navigation or general safety lighting. Typical installations include down lighting for main salons, cockpit overhangs, or above helm stations. A built in 3-position switch will allow you to switch from white to red (or off). The white LED may be dimmed from a remote switch when used with the IML PWM Dimmer ILIM80110. For details on dimming or general wiring & installation details, please see the Installation Instructions download on the side bar to the right. Please read regarding Maryland, Massachusetts and Washington shipments sales tax. Made in USA.

      Features & Benefits: Low power consumption • No radiated heat • Dual LED color operation • Constant current driver with dimming interface • Simple surface-mount installation • All stainless steel construction • Solid glass frosted lens • Double gaskets for splash-proof protection • Photometric ChartInstallation Instructions
    US$209.95 / EACH
  • Trim Ring Finish: Stainless Steel
  • Trim Ring Material: Stainless Steel
  • Lens Material: Frosted Glass
  • Trim Ring Diameter: 6.53" (166mm)
  • Fixture Height: 1.42" (36mm)
  • Voltage: 10-30VDC
  • Input Power (Watts): Warm White: 5.5W • Red: <2.5W
  • LEDs: Two (2) 3W Warm White Cree LEDs and Two (2) Red Rebel LEDs
  • Beam Angle (FWHM): 84° (White)
  • Correlated Color Temperature (CCT): 2800K
  • Color Rendering Index (CRI): 83
  • Lifetime Hrs (70% lm): 50,000 hrs (70% output)
  • Electrical Protections: Spikes/Transient Protection up to 200V (400mS)
  • Integral Switch: Yes, one-way toggle
  • Dimmer Module: See ILIM80110
  • Mounting Method: Screw-mount (hardware included)
  • Wire Size: See Chart
  • Ingress Protection: IP55
  • Weight: 0.45 lbs.
  • Part Number: ILIM10541

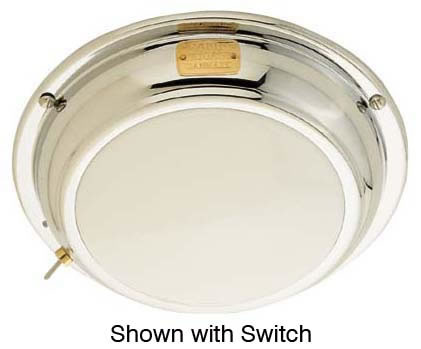

  • Cabin Anne Stainless Steel LED Dome Light by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

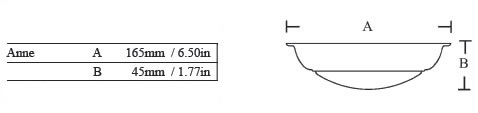

    Cabin Anne Stainless Steel LED Dome Light Diagram by Imtra Marine Lighting
    CABIN ANNE STAINLESS STEEL LED DOME LIGHTS WITH 3-WAY SWITCH BY IMTRA The Cabin Anne Stainless Steel LED Dome Light surface-mount fixture has become so popular it is now available in LED! The wide beam LED fixture offers the classic bezel, reliability, and warm white LED color you've come to expect for interior applications, but now with low power consumption. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Features & Benefits: Surface-mount design • Models available with or without integrated on/off switch • Integrated LED driver • LED Color - Warm


    US$229.95 / EACH
  • Trim Ring Finish: Stainless Steel
  • Lens Material: Polycarbonate
  • Trim Ring Diameter: 6.5" (165mm)
  • Fixture Height: 1.77" (45mm)
  • Voltage: 10-30VDC
  • Power Consumption: 3.6W
  • LEDs: Three (3) 1W OSRAM PowerLEDs
  • Beam Angle: 140°
  • Electrical Protections: Polarity reversal
  • Integral Switch: No
  • Mounting Method: Screw-mount
  • Wire Size: See Chart
  • Ingress Protection: IP20
  • Classifications: Class III, F-Rated, CE
  • Manufacturer: Cabin-Denmark
  • Weight: 1.0 lbs.
  • Part Number: MC161LED

  •
