Imtra Marine Products

Imtra Marine LED Replacement Bulbs on this webpage (FREE SHIPPING OVER $100*):
X-Beam G4 Side Bi-Pin Warm or Cool White LED Replacement Bulbs
X-Beam G4 Side Bi-Pin 12VAC or 24VAC LED Replacement Bulbs
X-Beam Novi G4 Side Bi-Pin Blue or Red LED Replacement Bulbs
X-Beam G4 Side Bi-Pin Blue/Cool White or Red/Warm White LED Replacement Bulbs
X-Beam G4 Back Bi-Pin Warm White, Cool White or Blue LED Replacement Bulbs
"Six-Gun" G4 Back Bi-Pin Warm or Cool White LED Replacement Bulbs
"Six-Gun" BA15s Single Contact or BA15d Double Contact Bayonet LED Replacement Bulbs
Mini Tower G4/GU4 Bi-Pin LED Replacement Bulbs
Tower E14 Screw Base LED Replacement Bulbs
Tower B15d Double Contact Bayonet LED Replacement Bulbs
Tower BAY15d Navigation Bayonet LED Replacement Bulbs
Festoon SV8.5 LED Replacement Bulbs
Linx MR16 LED Replacement Bulbs

X-Beam G4 Side Bi-Pin LED Replacement Bulbs by Imtra Marine Lighting

Click for larger image

Imtra Marine Lighting

X-Beam G4 Side Bi-Pin LED Replacement Bulb Diagram by Imtra Marine Lighting

X-BEAM G4 SIDE BI-PIN LED REPLACEMENT BULBS BY IMTRA At 120 and 150 lumens, these are Imtra's brightest Warm and Cool White (respectively) G4 LED bulbs. Proprietary PWM Constant-current drive and high output thermally-efficient SMDs combine to give record setting output in a G4 form factor. These work great in popular dome G4-based light fixtures from Scandvik, Perko, ABI and others. Choose warm white for interiors and cool white for exterior applications. Note: Check alignment of existing socket pin holes in your fixture. If not horizontal, a realignment of socket may be necessary. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

If you require low voltage AC (from transformers), see ILSPG4-12AC-10W(12VAC) or ILSPG4-24AC-10W (24VAC) below.

    Features & Benefits: High Output SMD LEDs · Constant-Current Drive Topology · Over-Voltage Protection · No Radiated Heat · Thermally Efficient Design
US$17.95 / EACH
  • Fits Socket: G4
  • LED Emitting Color: Warm White or Cool White
  • Typical Applications: Ceiling Fixtures, Spots
  • Dimensions: 31.5mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 2.2W
  • Current Draw: 180mA/12V · 90mA/24V
  • LED Type/Quantity: 10 x SMD
  • Beam Angle (FWHM): 120º
  • Light Output: Warm White: 120 Lumens · Cool White: 150 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILSPG4-10W / ILSPG4-10C
  • X-Beam G4 Side Bi-Pin 12VAC or 24VAC LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    X-Beam G4 Side Bi-Pin 12VAC or 24VAC LED Replacement Bulb Diagram by Imtra Marine Lighting

    X-BEAM G4 SIDE BI-PIN 12VAC OR 24VAC LED REPLACEMENT BULBS BY IMTRA Specifically designed to accept 12VAC or 24VAC (from step down transformer); at 120 and 150 lumens, these are Imtra's brightest Warm and Cool White (respectively) G4 LED bulb. The high output thermally-efficient SMD LEDs give record setting output in a G4 form factor. These work great in popular dome G4-based light fixtures from Imtra, Cantalupi, Scandvik, Perko, ABI and others. Note: Check alignment of existing socket pin holes in your fixture. If not horizontal, a realignment of socket may be necessary. For the standard 10-30VDC applications, please see the ILSPG4-10W model above. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: Designed to Operate with Low Voltage AC · High Output SMD LEDs · Over-Voltage Protection · No Radiated Heat · Thermally Efficient Design
    US$17.95 / EACH
  • Fits Socket: G4
  • LED Emitting Color: Warm White or Cool White
  • Typical Applications: Ceiling Fixtures, Spots
  • Dimensions: 31.5mm Diameter
  • Input Voltage: 12VAC · 24VAC
  • Power (Watts): 2.2W
  • Current Draw: 180mA/12V · 90mA/24V
  • LED Type/Quantity: 10 x SMD
  • Beam Angle (FWHM): 120º
  • Light Output: Warm White: 120 Lumens · Cool White: 150 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILSPG4-12AC-10W / ILSPG4-24AC-10W
  • X-Beam G4 Side Bi-Pin Blue LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    X-Beam G4 Side Bi-Pin Blue or Red LED Replacement Bulb Diagram by Imtra Marine Lighting

    X-BEAM NOVI G4 SIDE BI-PIN BLUE OR RED LED REPLACEMENT BULBS BY IMTRA The Novi Blue and Red LED bulb is one of the most popular LED replacement bulbs. The 6-LED SMD Power Cluster's compact design fits even the smallest side-pin G4 overhead fixtures common in today's modern boats. The Blue LED bulb illuminates side decks, aft cockpits and towers, and is becoming a popular choice for entertainment and other after-dark activities. The Red LED bulb is used in lights over nav stations and helm areas or anywhere a non-distracting light is required while operating a vessel in the dark. The six (6) Surface Mount Device (SMD) LEDs and proprietary PWM Constant-Current chipset give these LED bulbs amazing performance for its form-factor. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High Output SMD LEDs · Constant-Current Drive Topology · Over-Voltage Protection · No Radiated Heat · Thermally Efficient Design · Omni-Directional Viewing Angle
    US$13.95 / EACH
  • Fits Socket: G4
  • LED Emitting Color: Blue or Red
  • Typical Applications: Ceiling Fixtures, Spots
  • Dimensions: 23.0mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 1.5W
  • Current Draw: 120mA/12V · 60mA/24V
  • LED Type/Quantity: 6 x SMD
  • Beam Angle (FWHM): 120º
  • Warranty: 2 Years
  • Weight: 0.025 lbs.
  • Part Number: ILSPG4-06B / ILSPG4-06R
  • X-Beam G4 Side Bi-Pin Blue LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    X-Beam G4 Side Bi-Pin Blue/Cool White LED Replacement Bulb Diagram by Imtra Marine Lighting

    X-BEAM G4 SIDE BI-PIN BLUE/COOL WHITE OR RED/WARM WHITE LED REPLACEMENT BULBS BY IMTRA The dual color (Blue/Cool White or Red/Warm White) version of the popular "X-Beam" side-entry LED replacement bulb offers the flexibility to quickly change from Cool or Warm White illumination to Blue or Red (and vice-versa), respectively. There is no need to change existing wiring and it is controlled using your existing light switch. Initially, it will illuminate BLUE OR RED so it is not blinding or disruptive for navigation. Quickly turning switch OFF/ON (within 3 seconds) changes the light to COOL WHITE OR WARM WHITE, respectively. To return to BLUE OR RED, simply switch OFF (wait 4 seconds) and turn back ON. A PWM constant-current driver, a thermally conductive aluma-core board, and high quality components guarantee long term performance. These work great for shallow spots and small recessed or surface-mount fixtures with horizontally placed G4 halogen sockets. Flexible annealed wire pins are provided to allow easier fitment into tight areas. Pins may also be snipped to desired length. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: Switchable Blue/Cool White or Red/Warm White Illumination · High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design
    US$22.95 / EACH
  • Fits Socket: G4
  • LED Emitting Color: Blue/Cool White or Red/Warm White
  • Typical Applications: Small downlight spots and fixtures
  • Dimensions: 31.5mm (1.24") Diameter x 10.00mm (3.9") (+ pins)
  • Input Voltage: 10-30VDC
  • Power (Watts): 1.6W
  • Current Draw: 133mA/12V · 67mA/24V
  • LED Type/Quantity: 3 x Blue and 6 x Cool White OR 3 x Red and 6 x Warm White
  • Beam Angle (FWHM): 120º
  • Light Output (Lumens): 83 Lumens (Cool White) OR 72 Lumens (Warm White)
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILSPG4-09BC / ILSPG4-09RW

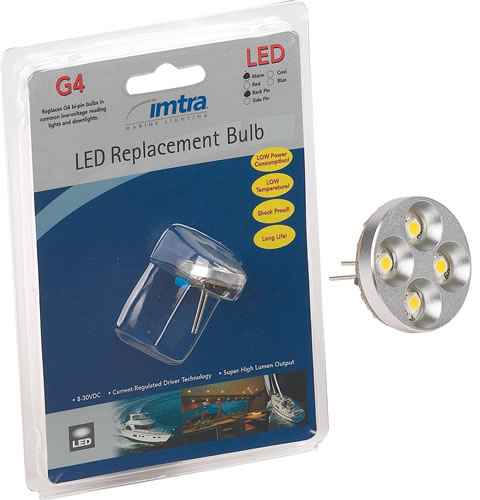

  • X-Beam G4/GU4 Back Bi-Pin LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    X-BEAM G4/GU4 BACK BI-PIN LED REPLACEMENT BULBS BY IMTRA At 120 lumens for warm white and blue colors and 150 lumens for cool white color, these are the brightest G4/GU4 Back Bi-Pin LED replacement bulbs. Proprietary PWM Constant-current drive and high output thermally-efficient SMDs combine to give record setting output in a G4/GU4 form factor. The “X-Beam” also features extra long pins to facilitate fitment into spotlights and reading lights with narrow beam reflectors. Using snips, you may cut the pins down to the length desired. Choose between Warm White, Cool White or Blue LED colors. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design
    US$17.95 / EACH
  • Fits Socket: G4/GU4
  • LED Emitting Color: Warm White, Cool White, Blue
  • Typical Applications: Ceiling Fixtures, Spots
  • Dimensions: 31.5mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 2.2W
  • Current Draw: 180mA/12V · 90mA/24V
  • LED Type/Quantity: 10 x SMD
  • Beam Angle (FWHM): 120º
  • Light Output: Warm White & Blue: 120 Lumens · Cool White: 150 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILBPG4-10W / ILBPG4-10C / ILBPG4-10B
  • Six-Gun G4 Back Bi-Pin LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    "SIX-GUN" G4 BACK BI-PIN LED REPLACEMENT BULBS BY IMTRA This compact 6-LED SMD design fits small to medium sized downlights with back-pin (vertical) mounted G4 sockets. This LED Bulb's small diameter also allows for installation in reading lights & chart lights with narrow conical reflectors. The extra long pins may be snipped down to desired length. Warm white color is typically chosen for interior living spaces, while cool white is commonly used for exterior applications and utility areas. Its six surface mount device (SMD) LEDs and proprietary PWM Constant-Current chipset give it amazing performance for its form-factor. Choose between Warm White or Cool White LED colors. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Small diameter board for narrow spaces · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design
    US$15.95 / EACH
  • Fits Socket: G4
  • LED Emitting Color: Warm White, Cool White
  • Typical Applications: Ceiling Fixtures, Spots
  • Dimensions: 22.9mm Diameter x 16.4mm Height (incl. pins)
  • Input Voltage: 10-30VDC
  • Current Draw: 120mA/12V · 60mA/24V
  • LED Type/Quantity: 6 x SMD
  • Beam Angle (FWHM): 120º
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILBPG4-06W / ILBPG4-06C

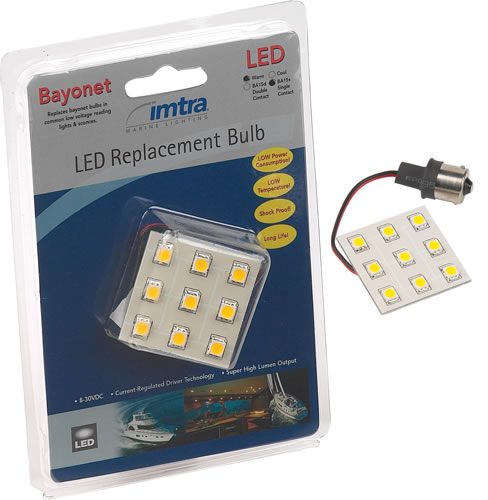

  • Reader BA15s Single and BA15d Double Contact Bayonet LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    "SIX GUN" BA15s SINGLE AND BA15d DOUBLE CONTACT BAYONET LED REPLACEMENT BULBS BY IMTRA For replacing BA15s (#1156) Single Contact (level side pins) Bayonet and BA15d (#1142) Double Contact (level side pins) Bayonet bulbs in popular bulkhead reading lamps. Impressive light output and focused beam angle make it ideal for your boat's reading lamps. Fixtures using the single-contact #1156 BA15s lamps are frequently found in older boats and RV's. Reading lights in newer boats & RVs typically use the double contact #1142 BA15d bulbs. Choose between BA15s Single Contact or BA15d Double Contact LED bulbs and Warm White or Red LED colors. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design · Optimized viewing angle for reading & spot lights · Red illumination - safe for navigation
    US$15.95 / EACH
  • Fits Socket: B15s Single Contact · B15d Double Contact
  • LED Emitting Color: Warm White or Red
  • Typical Applications: Bulkhead Reading and Chart Lights
  • Dimensions: 27mm Length x 38mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 1.5W
  • Current Draw: 125mA/12V · 63mA/24V
  • LED Type/Quantity: 6 x High Output SMD LEDs
  • Beam Angle (FWHM): 120º
  • Light Output: 72 Lumens
  • Warranty: 2 Years
  • Weight: 0.025 lbs.
  • Part Number: ILBA1156-06W / ILBA1142-06W / ILBA1156-06R / ILBA1142-06R
  • Tower G4/GU4 Bi-Pin LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    Tower G4/GU4 Bi-Pin LED Replacement Bulbs by Imtra Marine Lighting

    MINI TOWER G4/GU4 BI-PIN LED REPLACEMENT BULBS BY IMTRA The new G4/GU4 Bi-Pin Mini Tower LED replacement bulb works great in tube lights, small reading lights, pendant lights, and glass wall sconces where a tiny G4 is required. It projects light in all directions similar to an incandescent filament bulb. It features 15 mini-SMD LEDs, so it puts out a massive amount of light in a 360° pattern. Very popular in newer Beneteau's and custom yachts with tube-shaped swiveling reading lights. Proprietary PWM Constant-Current chipset results in high performance across the entire 8-30VDC range. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design · Omni-directional viewing angle
    US$21.95 / EACH
  • Fits Socket: G4 / GU4
  • LED Emitting Color: Warm White
  • Typical Applications: Sconces, Appliques, Tube Lights
  • Dimensions: 18.0mm Length x 13.0mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 1.3W
  • Current Draw: 120mA/12V · 60mA/24V
  • LED Type/Quantity: 15 x HO SMD
  • Beam Angle (FWHM): 120º (five directions) / 360º pattern
  • Light Output: 90 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILTWG4-15W
  • Tower E14 Screw Base LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    TOWER E14 SCREW BASE LED REPLACEMENT BULBS BY IMTRA At 210 lumens, the Tower E14 Screw Base LED replacement bulb is one of the brightest tower cluster bulbs available for marine use. It combines 18 surface mount (SMD) LEDs arrayed in 6 planes for 360° visibility. Proprietary PWM constant-current chipset results in high performance across the entire 8-30VDC range. Its 360° visibility makes it ideal for European style wall appliqués, sconces and table lamps which use the miniature screw base E14 bulb, widely used in Europe. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design · Omni-directional viewing angle
    US$27.95 / EACH
  • Fits Socket: E14 screw base
  • LED Emitting Color: Warm White
  • Typical Applications: Sconces, Appliques, Tube Lights
  • Dimensions: 34.8mm x 43mm (not including base)
  • Input Voltage: 10-30VDC
  • Power (Watts): 3.0W
  • Current Draw: 250mA/12V· 125mA/24V
  • LED Type/Quantity: 18 x SMD
  • Beam Angle (FWHM): 120º (five directions) / 360º pattern
  • Light Output: 210 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILE14-SMW
  • Tower B15d Double Contact Bayonet LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    Tower B15d Double Contact Bayonet LED Replacement Bulbs by Imtra Marine Lighting

    TOWER B15d DOUBLE CONTACT BAYONET LED REPLACEMENT BULBS BY IMTRA At 210 lumens, the Tower B15d Double Contact Bayonet LED replacement bulb is the highest output LED tower cluster available for marine use. It combines eighteen (18) surface mount (SMD) LEDs arrayed in six (6) planes for 360° visibility. Proprietary PWM Constant-Current chipset results in high performance across the entire 8-30VDC range. It's 360° visibility makes it ideal for wall appliques and table lamps which use the #1142 double-contact BA15d bayonet bulbs (non indexed level side pins). Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design · Omni-directional viewing angle
    US$27.95 / EACH
  • Fits Socket: B15d (double contact)
  • LED Emitting Color: Warm White
  • Typical Applications: Sconces, Appliques, Tube Lights
  • Dimensions: 34.8mm Length x 24.8mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 3.0W
  • Current Draw: 250mA/12V· 125mA/24V
  • LED Type/Quantity: 18 x SMD
  • Beam Angle (FWHM): 120º (five directions) / 360º pattern
  • Light Output: 210 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILTW1142-SMW
  • Tower BAY15d Navigation Bayonet LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    TOWER BAY15d NAVIGATION BAYONET (Back Entry) LED REPLACEMENT BULBS BY IMTRA This is the highest output LED tower cluster available for marine use. It uses eighteen (18) surface mount cool-white (SMD) LEDs arrayed in six (6) planes for 360° visibility. Proprietary PWM Constant-Current chipset results in high performance across the entire 10-30VDC range. This product is ideal for masthead (anchor light) and stern lamp applications in fixtures that use a BAY15d bulb (double contact, offset pins). Fits Aqua Signal Series 40, 41, 42 and 50, as well as Hella 2984 and Perko 200 Fixtures (clear lens fixtures only). Replaces Aqua Signal bulb #90005, Hella bulb #78290 and Perko bulb #037512V10W. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Important Notice: Navigation lights are tested and approved as a fixture with the original equipment source (bulb) already installed. The operator of vessel assumes all liability when using this product as a replacement for the original approved light source. The use of this LED light source in individual navigation fixtures has not been evaluated for compliance to USCG, COLREG, or any other navigational lighting standards or regulations.

      Features & Benefits: High output SMD LEDs · 360° Visibility · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design
    US$29.95 / EACH
  • Fits Socket: BAY15d (double contact, offset pins)
  • LED Emitting Color: Cool White
  • Typical Applications: Masthead, stern light
  • Dimensions: 34.8mm Length x 24.8mm Diameter
  • Input Voltage: 10-30VDC
  • Power (Watts): 3.0W
  • Current Draw: 250mA/12V· 125mA/24V
  • LED Type/Quantity: 18 x SMD
  • Beam Angle (FWHM): 120º (five directions) / 360º pattern
  • Light Output: 240 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILTW1157-SMC
  • Festoon SV8.5 LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    Festoon SV8.5 LED Replacement Bulbs by Imtra Marine Lighting

    FESTOON SV8.5 LED REPLACEMENT BULBS BY IMTRA The These 42mm festoon LED bulbs fit most fixtures with festoon bases in 1-5/8" or 41/42mm. They can replace standard 10W incandescent festoons that are common in courtesy lights and overhead dome fixtures. Choose between Warm White or Red LED colors. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

      Features & Benefits: High output SMD LEDs · Constant-current drive topology · Over-voltage protection · No radiated heat · Thermally efficient design · Universal design for multiple applications
    US$15.95 / EACH
  • Fits Socket: SV8.5
  • LED Emitting Color: Warm White, Red
  • Typical Applications: Ceiling Fixtures, Courtesy Light
  • Dimensions: 42.0mm x 15.9mm (L x W)
  • Input Voltage: 10-30VDC
  • Power (Watts): 1.5W
  • Current Draw: 120mA/12V · 60mA/24V
  • LED Type/Quantity: 6 x SMD
  • Beam Angle (FWHM): 120º
  • Light Output: 72 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILFS42-06W / ILFS42-06R
  • Linx MR16 LED Replacement Bulbs by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting

    LINX MR16 LED REPLACEMENT BULBS BY IMTRA Replace your inefficient and hot 10W halogen MR16 diachronic & reflector bulbs with these highly efficient and “cool” MR16 LED Replacement Bulbs. These bulbs feature constant-current drive electronics for steady light output across the full 10-30VDC range. Warm-white and Cool-white high output LEDS combined with special linked optical lens results in uniform and satisfying illumination. Input voltage must be DC (direct current) from a battery source, LED converter, or DC power supply. Choose between Warm White and Cool White LED colors. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    US$34.95 / EACH
  • Fits Socket: GU5.3 (MR16 reflector bulb)
  • LED Emitting Color: Warm White, Cool White
  • Typical Applications: Down Spots
  • Dimensions: 44.0mm x 50.0mm (Length x Diameter)
  • Input Voltage: 10-30VDC
  • Power (Watts): 3.25W
  • Current Draw: 1.27mA/12V · 0.14mA/24V
  • LED Type/Quantity: 3 x 1W Linked Lens
  • Beam Angle (FWHM): 30º
  • Light Output: Warm White: 180 Lumens · Cool White: 200 Lumens
  • Warranty: 2 Years
  • Weight: 0.015 lbs.
  • Part Number: ILALMR16-03WW / ILALMR16-03CW

  •
