Assorted Hinges on this webpage (FREE SHIPPING OVER $100*):
Brass Lift-Off Knuckle Hinges
Removable Pin Butt Hinges
Brass Take-Apart Hinges
Take-Apart Hinges
Locking Take-Apart Hinges
Semi-Concealed Cabinet Hinges
T-Hinges

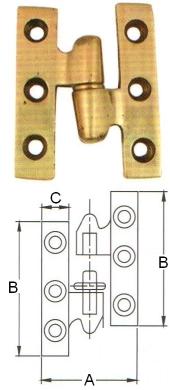

BRASS LIFT OFF KNUCKLE HINGES Lift-Off Knuckle Hinges include brass ring washer. Either right or left when opened. Finished in Polished Brass ONLY. Sold in pairs only. Fasteners not included.
These items are scheduled to be discontinued and are available in limited quantity.

US$34.95 / PAIR OF LEFT HINGES ONLY
Open Width (A): 2-1/8" · Hinge Length (B): 2-3/4" · Screw Plate Width (C): 9/16" · Plate Thickness: 3/32" · Fastener Holes: 3 · Fastener Size: #5 FH · Weight: 0.25 lbs. · P/N: 2030KB-R-1 / 2030KB-L-1
US$27.95 / PAIR
Open Width (A): 1-1/2" · Hinge Length (B): 2" · Screw Plate Width (C): 7/16" · Plate Thickness: 3/32" · Fastener Holes: 3 · Fastener Size: #6 FH · Weight: 0.19 lbs. · P/N: 2032KB-R-1 / 2032KB-L-1
US$20.95 / PAIR
Open Width (A): 1-1/2" · Hinge Length (B): 1-5/8" · Screw Plate Width (C): 3/8" · Plate Thickness: 3/32" · Fastener Holes: 2 · Fastener Size: #6 FH · Weight: 0.15 lbs. · P/N: 2034KB-R-1 / 2034KB-L-1

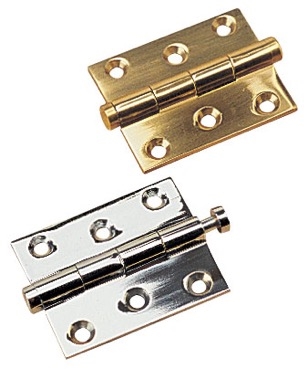

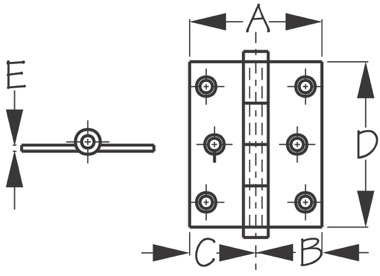

REMOVABLE PIN BUTT HINGES Designed for applications where occasional removal of a cabinet door may be required. Removable Pin Butt Hinges have a total of six (6) holes, except part number 204610 and 204611, which have four (4) holes. Finished in Polished Cast Brass and Polished Chrome (over Cast Brass). Sold in pairs only. Fasteners not included.

US$14.95 / PAIR
Open Width (A): 1-5/8" · Hinge Center to Right Edge (B): 13/16" · Hinge Center to Left Edge (C): 13/16" · Pin Plane Length (D): 1-5/8" · Width (E): 1/16" · Fastener Size: #6 · Weight: 0.19 lbs. · Part Number: 204611 (302110) / 204610
US$19.95 / PAIR
Open Width: 1-5/8" · Hinge Center to Right Edge (B): 13/16" · Hinge Center to Left Edge (C): 13/16" · Pin Plane Length: 2" · Width (E): 1/16" · Fastener Size: #6 · Weight: 0.25 lbs. · Part Number: 204616 / 204615
US$19.95 / PAIR
Open Width: 2" · Hinge Center to Right Edge (B): 1" · Hinge Center to Left Edge (C): 1" · Pin Plane Length: 2" · Width (E): 1/16" · Fastener Size: #6 · Weight: 0.32 lbs. · Part Number: 204621 / 204620
US$34.95 / PAIR
Open Width: 2-1/2" · Hinge Center to Right Edge (B): 1-1/4"" · Hinge Center to Left Edge (C): 1-1/4" · Pin Plane Length: 2-1/2" · Width (E): 1/16" · Fastener Size: #8 · Weight: 0.38 lbs. · Part Number: 204631 / 204630
US$39.95 / PAIR
Material: Chrome (over Brass) · Open Width: 3" · Pin Plane Length: 3" · Fastener Size: #10 · Weight: 0.75 lbs. · Part Number: 302611

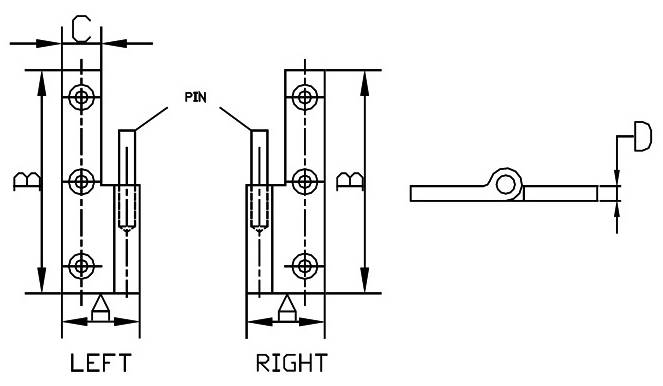

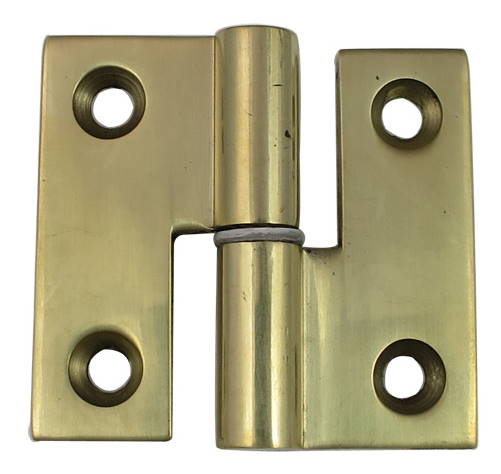

BRASS TAKE-APART HINGES The Take-Apart Hinges are designed for quick removal of doors and hatches. Finished in Cast Polished Brass. Sold in pairs only. Fasteners not included.

US$27.95 / PAIR
Overall Width (A): 1-1/2" · Hinge Length (B): 1-1/2" · Leaf Width (C): 1/2" · Plate Thickness: 1/16"· Fastener Size: #8 FH · Weight: 0.19 lbs. · P/N: 2030HB-R / 2030HB-L
US$37.95 / PAIR
Overall Width (A): 1-1/2" · Hinge Length (B): 2" · Leaf Width (C): 1/2" · Plate Thickness: 1/16"· Fastener Size: #8 FH · Weight: 0.19 lbs. · P/N: 2032HB-R / 2032HB-L
US$47.95 / PAIR
Overall Width (A): 1-1/2" · Hinge Length (B): 2-1/8" · Leaf Width (C): 1/2" · Plate Thickness: 1/16"· Fastener Size: #8 FH · Weight: 0.19 lbs. · P/N: 2034HB-R / 2034HB-L
US$57.95 / PAIR
Overall Width (A): 1-1/2" · Hinge Length (B): 2-3/4" · Leaf Width (C): 1/2" · Plate Thickness: 1/16"· Fastener Size: #8 FH · Weight: 0.19 lbs. · P/N: 2036HB-R / 2036HB-L

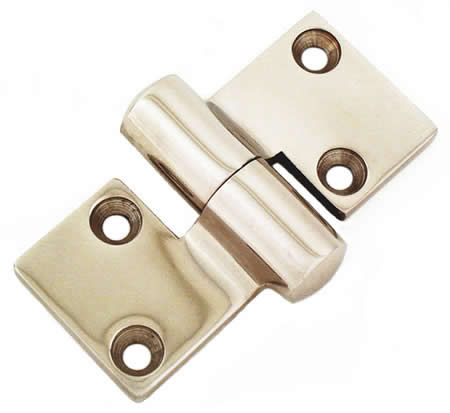

TAKE-APART HINGE The Take-Apart Hinges are designed for quick removal of doors and hatches. Investment cast 316 Stainless Steel construction. Requires #10FH fasteners (not included). Left hinge pictured. Sold in LEFT or RIGHT SIDE pairs only.

US$26.95 / PAIR OF LEFTS
Open Width (A): 3-1/2" · Left Side Length from Center (B): 1-3/4" · Right Side Length from Center (C): 1-3/4" · Pin Plane Length (D): 2" · Thickness (E): 3/16" · Fasteners: #10FH · Weight: 0.90 lbs. · Part Number: 205270
US$26.95 / PAIR OF RIGHTS
Open Width (A): 3-1/2" · Left Side Length from Center (B): 1-3/4" · Right Side Length from Center (C): 1-3/4" · Pin Plane Length (D): 2" · Thickness (E): 3/16" · Fasteners: #10FH · Weight: 0.90 lbs. · Part Number: 205275

LOCKING TAKE-APART HINGE The Locking Take-Apart Hinges are designed for quick removal of doors and hatches. Investment cast 316 Stainless Steel construction. Requires #10FH fasteners (not included). Sold in pairs only.

US$34.95 / PAIR
Open Width (A): 3-1/2" · Left Side Length from Center (B): 1-3/4" · Right Side Length from Center (C): 1-3/4" · Pin Plane Length (D): 2" · Thickness (E): 1/8" · Fasteners: #10FH · Weight: 0.46 lbs. · Part Number: 205276

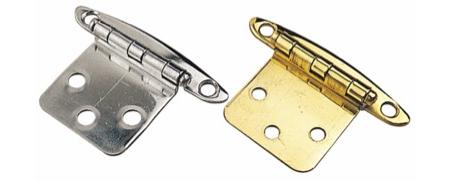

Brass & Stainless Steel Flush Mount Semi-Concealed Hinge
Brass & Stainless Steel Flush Mount Semi-Concealed Hinge
Click for larger image

Sea-Dog

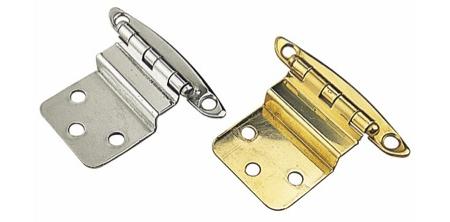

Brass & Stainless Steel Offset Mount Semi-Concealed Hinge
Brass & Stainless Steel Offset Mount Semi-Concealed Hinge
Click for larger image

SEMI-CONCEALED CABINET HINGES Lighter duty construction for manual closing applications. Finished in Stamped 304 Stainless Steel or Polished Brass. Available in Flush Mount or 3/8" Offset Mount styles. 1/2" Offset Mount available in Stainless Steel only. Sold in pairs. Fasteners not included.

FLUSH MOUNT

US$8.95 / PAIR
Style: FLUSH MOUNT · Open Width (A): 1-7/8" · Frame Mount Length (B): 2-3/4" · Gauge Thickness (C): 1/16" · Door Mount Length (D): 1-1/2" · Fastener Size: #6 FH · Weight: 0.10 lbs. · Part Number: 201954 / 201955

OFFSET MOUNT

NOTE: Part numbers 201914 and 201915 are designed to be mounted on the back surface of a door having a corresponding 3/8" offset mortised into the edge of the door. (See diagram)
Part number 201916 is designed to be mounted on the back surface of a door having a corresponding 1/2" offset mortised into the edge of the door. (See diagram)

US$8.95 - $10.95 / PAIR
Style: OFFSET MOUNT · Open Width (A): 2-3/16" · Frame Mount Length (B): 2-3/4" · Gauge Thickness (C): 1/16" · Door Mount Length (D): 1-1/2" · Offset: 3/8" - 1/2" · Fastener Size: #6 FH · Weight: 0.19 lbs. · Part Number: 201914 / 201915 / 201916

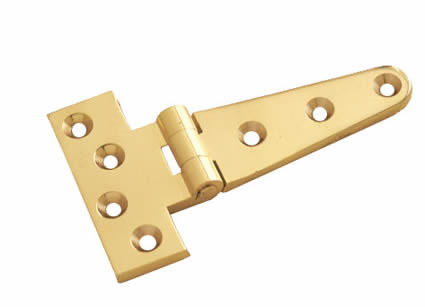

T-HINGE Very heavy gauge. Precision machined and polished to a mirror finish. T-Hinge finished in Polished Brass and Polished Chrome (over Brass). Sold in pairs only. Fasteners not included.

US$34.95 - $39.95 / PAIR
Open Length (A): 4" · Width (D): 2-3/8" · Hinge Length (C): 2-1/2" · Base Length (B): 1-1/2" · Thickness (E): 1/8" · Fastener Size: #8FH · Weight: 0.54 lbs. · Part Number: 204706 / 204705
