Hatch Lifts on this webpage (FREE SHIPPING OVER $100*):
Hatch Lift Handles
Hatch Pulls
Flush Hatch Pulls
Spring Loaded Flush Hatch Pulls
Turning Lock Hatch Lift Handles by Sea-Dog
Round Lift Rings
Lift Pull Rings

Sea-Dog Hatch Lift Handles
Click for larger image

Sea-Dog

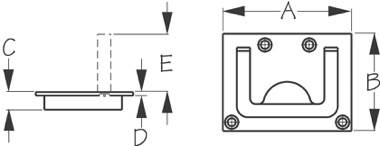

Sea-Dog Hatch Lift Handles Diagram

HATCH LIFT HANDLES Hatch Lift Handles fits flush into plate which can be recessed into the hatch. Stainless steel hinge pin. Finished in Polished Brass, Polished Chrome (over Brass), or Polished 316 Stainless Steel. Fasteners not included.

US$14.95 / EACH
Length (A) 2-15/16" · Width (B): 2-3/16" · Depth (C): 3/8" · Cut-Out Depth (D): 1/16" · Handle Length (E): 1-3/16" · Fastener Size: #6 · Weight: 0.41 lbs. · Part Number: 330610 / 222425 / 330677
Sea-Dog Hatch Pulls
Click for larger image

Sea-Dog
Sea-Dog Hatch Pulls Diagram

HATCH PULLS The Chrome Plated Sand Cast Brass Hatch Pull are ideal for use on doors, hatches, lazarettes and dock boxes. Handle pivots out (1-1/4") to open hatches and lays flush when not in use for a clean appearance. Installs with four (4) #8 FH fasteners (not included).

US$8.95 / EACH
Length (A): 3" · Width (B): 2-1/8" · Depth (C): 5/16" · Cut Out Depth (D): 1/16" · Handle Pivot (E): 1-1/4" · Fastener Size: #8 · Weight: 0.2 lbs. · Part Number: 222420
Sea-Dog Flush Hatch Pulls
Click for larger image

Sea-Dog
Sea-Dog Flush Hatch Pulls Diagram

FLUSH HATCH PULL The Investment Cast 316 Stamped Stainless Steel Flush Hatch Pull are corrosion resistant and ideal for use on doors, hatches, lazarettes and dock boxes. Handle pivots out to open hatches and lays flush when not in use for a clean appearance. Installs with four (4) #8 FH fasteners (not included).

US$17.95 / EACH
Length (A): 3" · Width (B): 2-1/8" · Depth (C): 5/16" · Cut Out Depth (D): 1/16" · Handle Pivot (E): 1-1/4" · Fastener Size: #8 · Weight: 0.2 lbs. · Part Number: 221860
Sea-Dog Stainless Steel Spring Loaded Flush Hatch Pulls
Click for larger image

Sea-Dog
Sea-Dog Stainless Steel Spring Loaded Flush Hatch Pulls Diagram

SPRING LOADED FLUSH HATCH PULL The 304 Stamped Stainless Steel Spring Loaded Flush Hatch Pull are corrosion resistant and ideal for use on hatches and lazarettes. Spring loaded handle prevents rattling and stays flush against the base, even in vertical applications. Installs with four (4) #8 FH fasteners (not included).

US$7.95 / EACH
Length (A): 3" · Width (B): 2-1/4" · Depth (C): 5/16" · Cut Out Depth (D): 1/32" · Handle Pivot (E): 1-5/16" · Fastener Size: #8 · Weight: 0.11 lbs. · Part Number: 221820
Sea-Dog Turning Lock Hatch Lift Handles
Click for larger image

Sea-Dog
SailboatStuff Stainless Steel Turning Lock Hatch Lift Handle

TURNING LOCK HATCH LIFT HANDLES BY SEA-DOG Turning Lock Hatch Lift Handles fit flush into plate, which can be recessed into the hatch. Locking arm height is adjustable, secured with set screw. Arm can be trimmed to desired length. Finished in Polished Brass, Chrome (over Brass), or Polished 316 Stainless Steel. #8 FH fasteners not included.

US$70.95 / EACH - CHROME OVER BRASS ONLY
Width (A): 3-1/8" · Height (B): 2-11/16" · Overall Depth (C): 4-5/16" Screw Center-to-Center (D x E): 2-5/8" x 2-1/16" · Arm Diameter (F): 1/2" · Fastener Size #8 FH · Weight: 1.25 lbs. · Part Number: 222435
US$70.95 - $90.95 / EACH
Width (A): 3-3/4" · Height (B): 3" · Overall Depth (C): 5-5/16" (Stainless: 6") · Screw Center-to-Center (D x E): 3-1/8" x 2-7/8" · Arm Diameter (F): 1/2" · Fastener Size #8 FH · Weight: 1.5 lbs. · Part Number: 222440 / 222441 / 221835
SailboatStuff Round Lift Ring
SailboatStuff

ROUND LIFT RINGS Flush mounting ideal for cabin sole or hatches. Round Lift Rings are finished in Polished Brass or Polished Chrome (over Brass). Fasteners not included.

US$6.95 / EACH
Outer Diameter Diameter: 1-5/8" · Depth: 7/16" · Fastener Size: #6 · Weight: 0.19 lbs. · Part Number: 330110 / 222460
US$9.95 / EACH
Outer Diameter Diameter: 2" · Depth: 9/16" · Fastener Size: #8 · Weight: 0.25 lbs. · Part Number: 330210 / 330211
SailboatStuff Lift Ring Pull
SailboatStuff

LIFT PULL RINGS Convenient flush-fitting ring pulls for cabinets, small doors and hatches. Lift Pull Rings are finished in Polished Brass or Polished Chrome (over Brass). Fasteners not included.

US$5.95 / EACH
Length: 1-13/32" · Width: 1-5/32" · Depth: 3/8" · Fastener Size: #4 · Weight: 0.07 lbs. · Part Number: 330910 / 330911
US$9.95 / EACH - BRASS ONLY
Length: 1-3/4" · Width: 1-13/32" · Depth: 7/16" · Fastener Size: #8 · Weight: 0.13 lbs. · Part Number: AA51021B
US$12.95 / EACH - BRASS ONLY
Length: 1-7/8" · Width: 1-1/2" · Depth: 7/16" · Fastener Size: #8 · Weight: 0.13 lbs. · Part Number: AA51022B
US$16.95 / EACH - CHROME (over Brass) ONLY
Length: 2-17/32" · Width: 1-15/16" · Depth: 17/32" · Fastener Size: #8 · Weight: 0.25 lbs. · Part Number: 331111
