LED Light Accessories on this webpage (FREE SHIPPING OVER $100*):
Pole Mount Adapters Signal Mate
Horizontal Rail Mount Bracket Signal Mate
Centerline Adjustable Mounting Brackets Signal Mate
360 Degree Navigation Light Brackets Signal Mate
Navigation Light Mounting Bracket Signal Mate
Top Mounting Brackets Orca Green Marine
Side Mounting Brackets Orca Green Marine
Termination Covers Signal Mate
Round Black Covers f/Termination & Bracket Signal Mate
Selector Switch LED Tri-Color Anchor Light Orca Green Marine
Reverse Switch LED Tri-Color Anchor Light Orca Green Marine
For more information regarding LED Lighting

Pole Mount Adapter by Signal Mate (Misea Group)
Click for larger image

Signal Mate

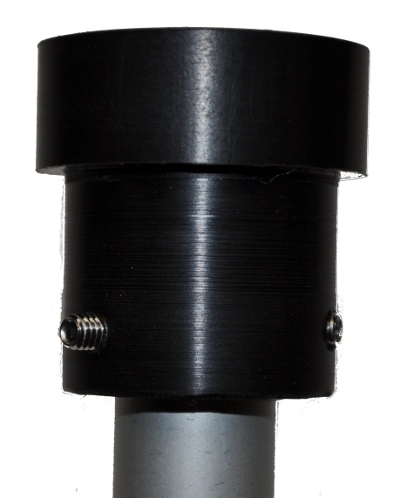

POLE MOUNT ADAPTER BY SIGNAL MATE The Pole Mount Adapter is used for mounting a Signal Mate Anchor, Steaming or Steaming/Anchor combination LED Navigation Lights on a 3/4 or 1 inch pole. The adapter is held fast to a pole by 3 set screws. Select 3/4" or 1" pole size.

US$38.95 / EACH
Shipping Weight: 1.0 lbs. · Part Number: PADPT75 / PADPT1
Horizontal Rail Mount  Bracket by Signal Mate
Click for larger image

Signal Mate

Horizontal Rail Mount Bracket by Signal Mate

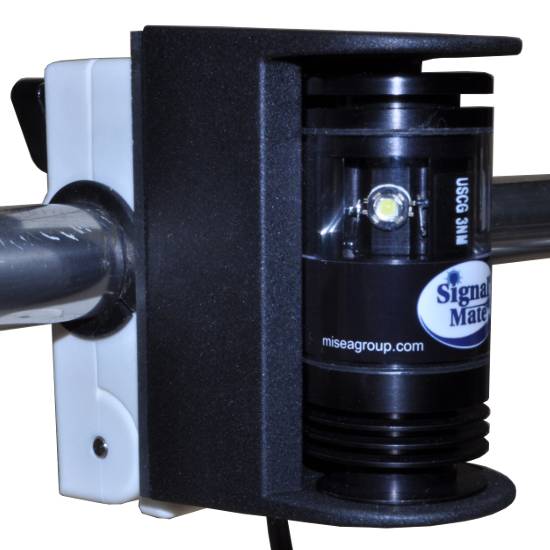

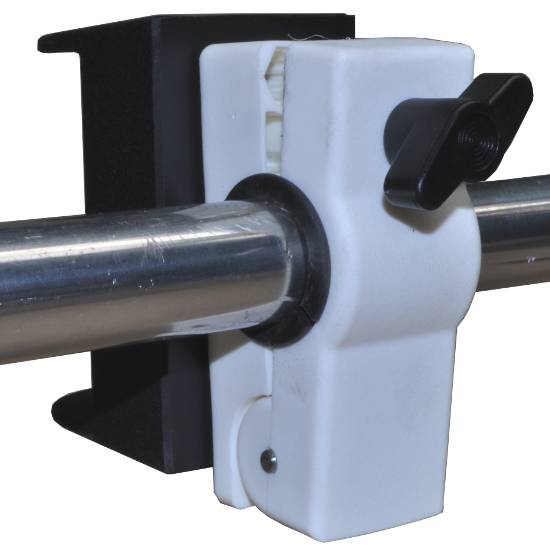

HORIZONTAL RAIL MOUNT BRACKET BY SIGNAL MATE The Horizontal Rail Mount Bracket allows easy installation of a Signal Mate LED Port, Starboard, Stern, Masthead, Towing, Special Flashing, or Bi-color navigation light to any horizontal rail.
NOTE: Photograph shows light in bracket for illustration purposes. Lights are NOT included with bracket.

US$84.95 / EACH
  • Length: 3-1/4"
  • Width: 2-1/8"
  • Depth: 3-5/8"
  • Horizontal Rail Mounting for Signal Mate LED Navigation Lights
  • New Installation or Upgrade for Bow or Stern Navigation Lights
  • Construction: ASA plastic with UV inhibitors
  • Two (2) Helm Rail Clamps
  • Fits 7/8" to 1-1/4" Rails
  • All mounting hardware and Wire Connectors Included, Ready for Final Installation
  • Shipping Weight: 0.5 lbs.
  • Part Number: RAILMT
  • Centerline Adjustable Mounting Bracket by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate

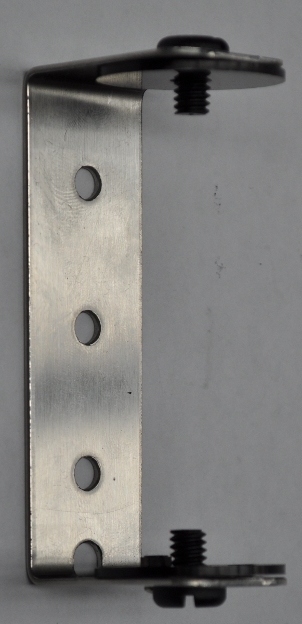

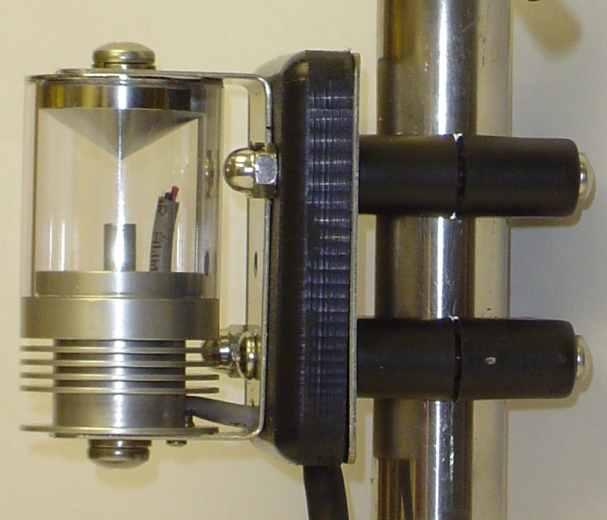

    CENTERLINE ADJUSTABLE MOUNTING BRACKET BY SIGNAL MATE The Centerline Adjustable Mounting Brackets are used to mount LED Port, Starboard, Stern and Masthead lights. Brackets can be used for side or front mounting and are adjustable for center line corrections. Finished in stainless steel.

    US$28.95 / EACH
  • Stainless Steel Thickness: 0.625"
  • Height: 3.25"
  • Width: 1.0"
  • Movable Adjustment Pin Allows Light to be Rotated for Different Alignment Angles 0° to 90°
  • Adjusts for Proper Vessel Center Line and Vessel Curvature
  • Easy Retrofitting Incandescent to LED Lighting
  • Masthead Mounting
  • Three (3) #10 Mounting Holes Allows the Use of Two (2) for Mounting and the Third as an Optional Wire Exit
  • Horizontal or Vertical Wire Exit
  • Two (2) Glass Reinforced UV Nylon 1/4-20 Screws, Insulating Washers and Lock Washers
  • Shipping Weight: 1.0 lbs.
  • Part Number: BRKTCL
  • 360 Degree Navigation Light Bracket by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

    360 DEGREE NAVIGATION LIGHT BRACKET BY SIGNAL MATE The 360 Degree Navigation Light Bracket is used to mount Signal Mate 360 degree (All-Around) navigation lights. Finished in stainless steel.

    US$24.95 / EACH
  • Stainless Steel Thickness: 0.625"
  • Length: 2-1/8"
  • Height: 0.9"
  • Width: 1.0"
  • 1/4 Inch Center Hole for Mounting Light
  • Holding Screw and Nut to Keep Light From Turning
  • Plastic Isolation Washer Between Dissimilar Metals
  • Two #10 Mounting Holes
  • Shipping Weight: 1.0 lbs.
  • Part Number: BRKT360
  • 360 Degree Navigation Light Bracket by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

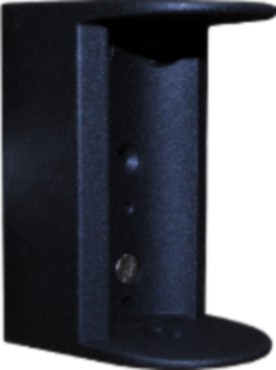

    NAVIGATION LIGHT MOUNTING BRACKET BY SIGNAL MATE The Navigation Light Mounting Bracket allows easy installation of Signal Mate navigation lights: Port, Starboard, Stern, Bi-Color, Masthead, Towing, and Special Flashing. Wire termination area at rear of fixture.

    US$28.95 / EACH
  • Construction: ASA Black Plastic with UV Inhibitors
  • Height: 3-3/4"
  • Width: 2-1/8"
  • Depth: 2-5/8"
  • Mounts Using Two (2) #10 Flat Head Screws
  • Wire Termination Area Inside of Fixture -or- Wire Can be Run Outside
  • Shipping Weight: 1.0 lb.
  • Part Number: BRKTTERM
  • Top Mounting Bracket by Orca Green Marine
    Click for larger image

    Orca Green Marine (Misea Group)

    TOP MOUNTING BRACKET BY ORCA GREEN MARINE Mounting bracket designed to mount OGM LED Tri-Anchor and Anchor lights (all versions) to the top of a mast or other flat surface. Multiple mounting holes allow rotation of bracket in various orientations. Constructed of 316 Stainless Steel.

    US$38.95 / EACH
  • Material: 316 Stainless Steel
  • Width: 2.5"
  • Overall Length: 4.68"
  • Mounting Hole Spacing: 3.9"
  • Weight: 0.25 lbs.
  • Part Number: LXBRKT-02
  • Side Mounting Bracket by Orca Green Marine
    Click for larger image

    Orca Green Marine (Misea Group)

    SIDE MOUNTING BRACKET BY ORCA GREEN MARINE Mounting bracket designed to mount with OGM Tri-Anchor and Anchor LED Lights (all versions) and Masthead/Steaming LED Lights. Multiple mounting holes allow rotation of bracket in various orientations. Constructed of 316 Stainless Steel.

    US$38.95 / EACH
  • Material: 316 Stainless Steel
  • Length: 5.3"
  • Weight: 0.25 lbs.
  • Part Number: LXBRKT-01

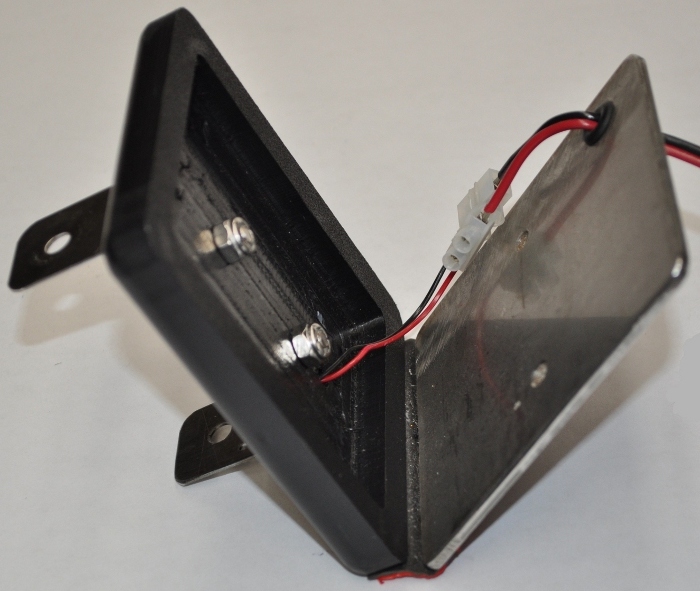

  • Black Termination Cover by Signal Mate (Misea Group)

    Click for larger image

    Signal Mate (Misea Group)


    Black Termination Cover by Signal Mate (Misea Group)

    White Termination Cover by Signal Mate (Misea Group)

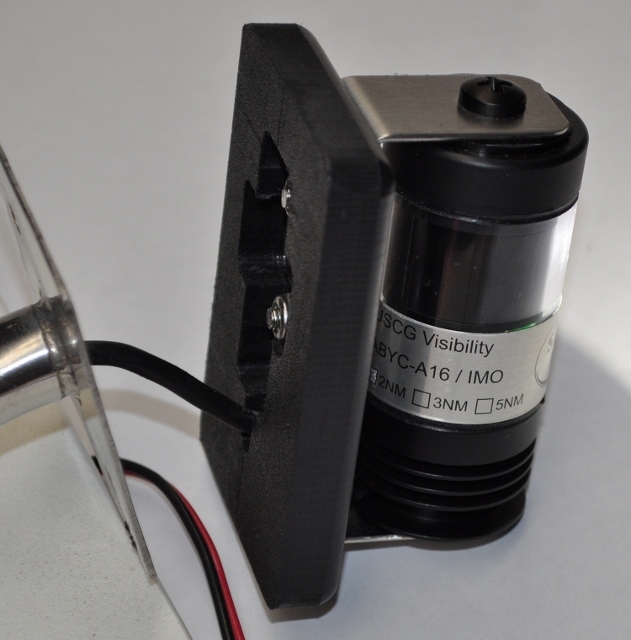

    TERMINATION COVERS BY SIGNAL MATE Termination Covers are used installing Signal Mate LED Navigation Lights with Centerline Adjustable Brackets (see above). The Termination Covers are sized to cover most footprints of incandescent light fixtures and the backside are machined to allow room for wire termination. Select from small, medium or large termination cover sizes in either black or white color.

    • Small 2-5/8" x 3-3/4" - replaces Aquasignal 25 series and Hella #3562 series
    • Medium 3-5/8" x 4-5/16" - replaces Aquasignal 40 & 41 series
    • Large 4-5/16" x 4-5/16" - replaces Hella #2984 series
    • White or Black color
    US$21.95 / EACH
  • Sizes : Small, Medium, Large (see above for dimensions)
  • Uses Existing Wiring Without Pulling New Wires
  • Used for Retrofitting Existing Bow and Stern Pulpits
  • Sized to Replace Most Manufactures Navigational Light Fixtures
  • Wire Connectors Included for Easy Terminations
  • Made of 1/2" Black or White King Starboard Marine Polymer
  • Durable and Easy to Drill for Various Manufactures Hole Patterns
  • Shipping Weight: 1.0 lbs.
  • Part Number: Termination Cover
  • Round Black Covers by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

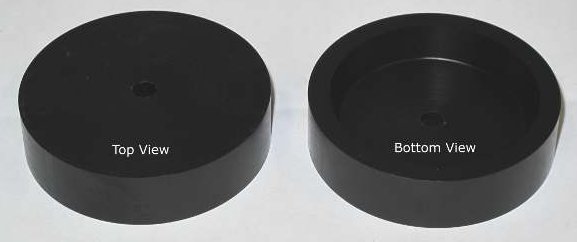

    ROUND BLACK DERLIN COVER FOR WIRE TERMINATION & BRACKET BY SIGNAL MATE The Round Black Cover is used for new and retrofitting Signal Mate All Round navigation light LED installations. Round covers have the backside milled out (3/8") for wire terminations.

    US$28.95 / EACH
  • Diameter: 2-1/2"
  • Thickness: 5/8"
  • Replaces Perko Footprints on Deck
  • Atop Mast for Mounting Anchor Light
  • Mounting All Purpose Lights
  • Construction: Black Delrin Plastic
  • Two (2) Wire Connectors Included
  • Shipping Weight: 1.0 lbs.
  • Part Number: RDBLK
  • Orca Green Marine Selector Switch for Tri-Anchor Light
    Click for larger image

    Orca Green Marine (Misea Group)

    SELECTOR SWITCH FOR LED TRI-ANCHOR LIGHT BY ORCA GREEN MARINE Rugged rotary switch with black anodized faceplate showing 4 positions: Off-Tricolor-Anchor-Strobe. Also includes rear PC board with terminal block for easy connections and built-in 2 amp fuse. Circuit board dimensions are 2.5 x 2.5 inches. Faceplate dimensions are 2.25" wide by 2.5" high. Simply connect incoming power to Batt+ and Batt- terminals, and the TriAnchor light wire black, brown, and blue to marked terminals. Works for both strobe and non-strobe versions of Tri-Anchor Lights.

    US$47.95 / EACH
    Four Positions: Off-TriColor-Anchor-Strobe · Part Number: Switch-SEL
    Orca Green Marine Reverse Switch for Tri-Anchor Light
    Orca Green Marine (Misea Group)

    REVERSE SWITCH FOR LED TRI-ANCHOR LIGHT BY ORCA GREEN MARINE Three-position toggle switch for 2-wire operation of LED Tri-Anchor Lights. Positions: Tricolor-Off-Anchor. NOT for use on Strobe model Lights.

    US$29.95 / EACH
    Three Positions: Tri-Color/Off/Anchor · Part Number: Switch-REV
