Rectangular Portholes and Parts on this webpage (FREE SHIPPING OVER $100*):
Highly Polished Rectangular Portholes (Portlights)
Replacement Parts for Rectangular Portholes
Spare Porthole Dogs & Studs
Anchor-Style Porthole Chains
T-Bar Porthole Chains



HIGHLY POLISHED RECTANGULAR PORTHOLES (PORTLIGHTS) Flange and finish ring countersunk for wood screws. Hinges contain adjusting screws for gasket compression. Spigot is sloped for drainage. Spigots have 1-3/16" inner diameter radius and 1-1/4" cutout radius. All portholes have laminated safety glass, gasket, finish ring and insect screen. Finished in Polished Bronze and #304 Electro Polished Stainless Steel. See below for Replacement Parts for Rectangular Portholes.

SailboatStuff Bronze Rectangular Portholes
SailboatStuff
US$449.95 / KIT - BRONZE
Opening Dim.: 5-1/4" x 12" · Glass Thickness: 1/4" · Glass Dimensions: 4-1/2" x 11-1/2" · Spigot O.D. (cut-out size): 5-1/2" x 12-1/2" · Spigot Depth: 1-1/2" · Spigot Slope: 10 deg · Cabin Thickness: 1-1/4" · Flange O.D.: 7-1/2" x 14-5/8" · Fastener Size: 1/4" · Weight: 16 lbs. · Part Number: 1140B/42B (132012)
US$649.95 / KIT - BRONZE
Opening Dim.: 7" x 14" · Glass Thickness: 3/8" · Glass Dimensions: 6-3/4" x 13-3/4" · Spigot O.D. (cut-out size): 7-5/8" x 14-5/8" · Spigot Depth: 1-1/2" · Spigot Slope: 10 deg · Cabin Thickness: 1-1/4" · Flange O.D.: 10" x 17" · Fastener Size: 9/32" · Weight: 29 lbs. · Part Number: 1148B/50B (132112)

SailboatStuff Stainless Steel Rectangular Portholes
Click for larger image

SailboatStuff
US$449.95 / KIT - STAINLESS STEEL
Opening Dim.: 5" x 12" · Glass Thickness: 1/4" · Glass Dimensions: 4-1/2" x 11-1/2" · Spigot O.D. (cutout size): 5-1/4" x 12-1/4" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-3/8" · Flange O.D.: 7-1/2" x 14-1/2" · Fastener Size: 7/16 · Weight: 8.75 lbs. · Part Number: 132077
US$549.95 / KIT - STAINLESS STEEL
Opening Dim.: 7" x 14" · Glass Thickness: 1/4" · Glass Dimensions: 6-3/4" x 13-3/4" · Spigot O.D. (cutout size): 7-1/4" x 14-1/4" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-3/8" · Flange O.D.: 9-1/2" x 16-1/2" · Fastener Size: 7/16" · Weight: 11.25 lbs. · Part Number: 132177
US$669.95 / KIT - STAINLESS STEEL
Opening Dim.: 8" x 18" · Glass Thickness: 1/4" · Glass Dimensions: 7-3/4" x 17-3/4" · Spigot O.D. (cutout size): 8-1/4" x 18-1/4" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-3/8" · Flange O.D.: 10-1/2" x 20-1/4" · Fastener Size: 7/16 · Weight: 13.75 lbs. · Part Number: 132277
US$839.95 / KIT - STAINLESS STEEL
Opening Dim.: 10" x 21" · Glass Thickness: 1/4" · Glass Dimensions: 9-3/4" x 20-3/4" · Spigot O.D. (cutout size): 10-1/8" x 21-1/8" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-5/8" · Flange O.D.: 12-1/2" x 23-1/2" · Fastener Size: 7/16" · Weight: 18 lbs. · Part Number: 132377


REPLACEMENT PARTS FOR RECTANGULAR PORTHOLES

US$39.95 - $109.95 / EACH
Replacement Laminated Safety Glass for Rectangular Portholes
US$26.95 - $44.95 / EACH
Replacement Screen for Rectangular Portholes
US$74.95 - $239.95 / EACH
Replacement Finish Ring for Rectangular Portholes
US$4.95 / PER FOOT

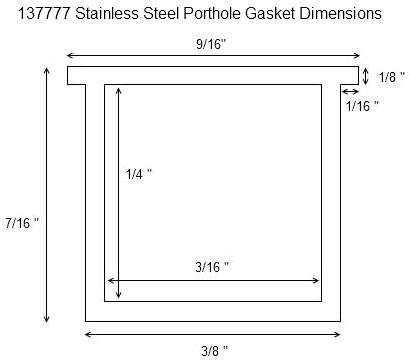

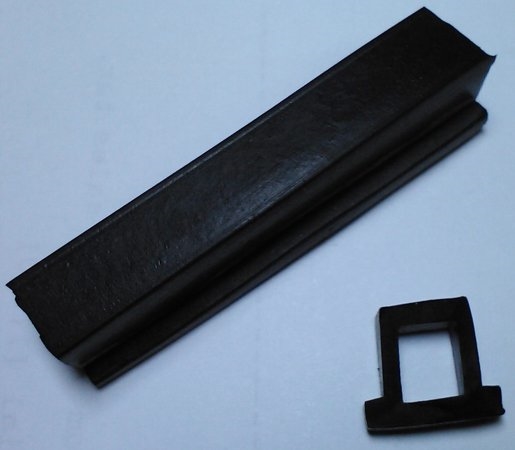

Replacement Gasket for Stainless Steel Rectangular Portholes
Dimensions of Hollow "T" (flanged) Shaped Gasket: 5/16" x 1/2" · Flange: 1/2" · Part Number: 137777
SailboatStuff Spare Porthole Dog & Stud
SailboatStuff

SPARE PORTHOLE DOGS & STUDS Spare Dogs and Studs for all of the Polished Bronze or Stainless Steel portholes.

US$24.95 / EACH - BRONZE
Replacement 3/8" DOG for Bronze 5" x 12" and 7 x 14" Rectangular Portholes · Part Number: 1182B-DOG
US$10.95 / EACH - BRONZE
Replacement 3/8" STUD for Bronze 5" x 12" and 7 x 14" Rectangular Portholes · Part Number: 1182B-STUD
US$8.95 / EACH - BAKELITE
Replacement BAKELITE DOG for ALL Rectangular Stainless Steel Portholes · Part Number: 134777
US$24.95 / EACH - STAINLESS STEEL
Replacement 3/8" STUD for ALL Rectangular Stainless Steel Portholes · Part Number: 134977
SailboatStuff Brass & Chrome Anchor-Style Porthole Chain
Click for larger image

SailboatStuff

ANCHOR-STYLE PORTHOLE CHAINS Anchor-Style Porthole Chains are finished in Polished Brass ONLY. Secures with two (2) #6 fasteners(not included).

US$14.95 / EACH - BRASS ONLY
Style: Anchor · Length: 8" · Weight: 4 oz. · Part Number: 8131B
SailboatStuff Brass & Chrome T-Bar Porthole Chain
Click for larger image

SailboatStuff

T-BAR PORTHOLE CHAINS T-Bar Porthole Chains have machined groove to fit dogs. Finished in Polished Brass or Polished Chrome (over Brass). Secures with two (2) #6 fasteners (not included).

US$13.95 / EACH
Style: T-Bar · Length: 8" · Weight: 2 oz. · Part Number: 8130B / 8130BC
