Door Hardware on this webpage (FREE SHIPPING OVER $100*):
Door Holder (Catch) with Cushion
Decorative Door Handles
Angular Door Handles
Rounded Door Handles
Heavy-Duty Door Handles
Door Bumpers
Door Buttons
Offset Door Hinge
Backing Plate for Door Hinge

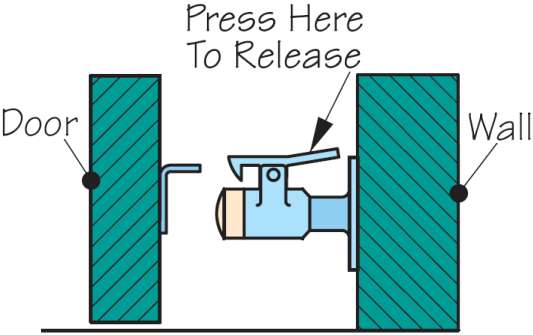

Door Holder ⁄ Catch Installation
Click for larger image

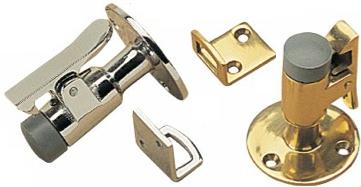

SailboatStuff Brass & Stainless Steel Door Holders with Cushion - STRAIGHT
Click for larger images

SailboatStuff

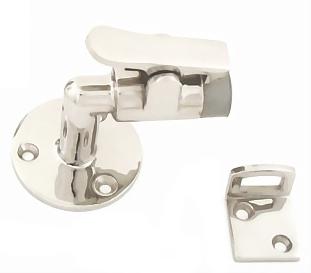

SailboatStuff Stainless Steel Door Holders with Cushion - ANGLED
Click for larger image

SailboatStuff

DOOR HOLDER (CATCH) WITH CUSHION Has a latching feature which automatically latches the door against the rubber cushion when the door is fully opened against it. Door is easily released by depressing latch. Can be mounted anywhere and has no sharp edges. Includes striker plate for door. See larger image for two (2) different styles - Deck/Overhead & Bulkhead. Available in Polished Brass, Polished Chrome (over Brass), Polished Titan Tuff™ Gold (PVD - Physical Vapor Deposition process with titanium nitride coating) and Polished Investment Cast #316 Stainless Steel. Fasteners not included.

STRAIGHT (BULKHEAD INSTALLATION)

US$16.95 - $30.95 / EACH
Wall-Door Distance: 2-1/2" · Base Diameter: 2" · Fastener Size: #6 · Weight: 0.45 lbs. · Part Number: 351110(222712) / 222710 / CH3674 / 221710
US$20.95 - $33.95 / EACH
Wall-Door Distance: 3-1/2" ~ 4" · Base Diameter: 2 " · Fastener Size: #6 · Weight: 0.50 lbs. · Part Number: 351210 / 351262 / 351277

ANGLED (DECK/OVERHEAD INSTALLATION)

US$29.95 - $33.95 / EACH · 90 DEGREE ANGLE
Base Diameter: 1-7/8" · Base to Stem: 1" · Length of Stem: 2-3/8" · Fastener Size: #6 · Weight: 0.65 lbs. · Part Number: CH3677 / HM003677

REPLACEMENT PARTS

$1.95 - $7.95 / EACH
Replacement Striker Plate · Weight: 0.07 lbs. · Part Number: 351101 / 351105
US$1.95 / EACH
Replacement Rubber Cushion · Weight: 0.07 lbs. · Part Number: 0P22101
SailboatStuff Polished Brass & Chrome Decorative Handle
Click for larger image

SailboatStuff

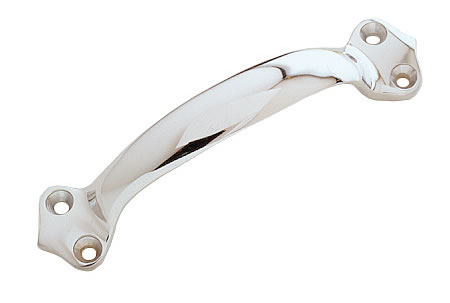

DECORATIVE DOOR HANDLES Decorative door handle has rounded design with no sharp edges. Decorative Door Handles are finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$5.95 / EACH
Length: 4-1/8" · Base Width: 1" · Height: 1" · Fastener Size: #6 · Weight: 0.19 lbs. · Part Number: 331510 / 331511
US$13.95 - $14.95 / EACH
Length: 6" · Base Width: 1-5/16" · Height: 1-9/32" · Fastener Size: #10 · Weight: 0.38 lbs. · Part Number: 331610 / 331611
SailboatStuff Polished Brass & Chrome Angular Door Handle
Click for larger image

SailboatStuff

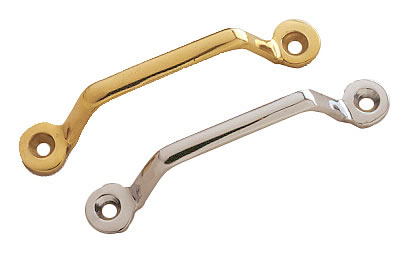

ANGULAR DOOR HANDLES Angular Door Handles have rounded design with no sharp edges. Door hardware finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$4.95 / EACH
Length: 3-5/8" · Base Width: 5/8" · Height: 13/16" · Fastener Size: #6 · Weight: 0.07 lbs. · Part Number: 331310 / 331311
SailboatStuff Polished Brass & Chrome Rounded Door Handle
Click for larger image

SailboatStuff

ROUNDED DOOR HANDLES Rounded Door Handles has rounded design with no sharp edges. Door hardware finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$5.95 - $6.95 / EACH
Length: 4-3/4" · Base Width: 5/8" · Height: 1" · Fastener Size: #8 · Weight: 0.10 lbs. · Part Number: 331410 / 331411

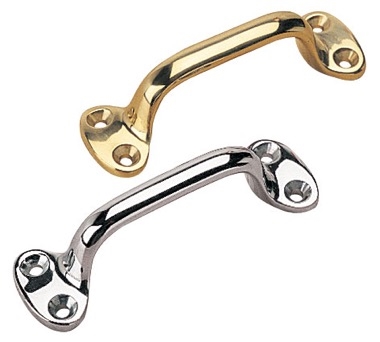

HEAVY-DUTY DOOR HANDLES Heavy-Duty Door Handles have rounded design with no sharp edges. Door hardware finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$27.95 / EACH
Length (A): 6" · Handle Width (B): 2-1/2" · Handle Height (C): 1-1/4" · Base Width (D): 1-7/8" · Hole-to-Hole Center Width (E): 1-1/16" · Hole-to-Hole Center Length (F): 5" · Fastener Size: #8 FH · Weight: 0.41 lbs. · Part Number: 331710 (222356) / 331711 (222355)
SailboatStuff Polished Brass & Chrome Door Bumper
Click for larger image

SailboatStuff

DOOR BUMPERS Door Bumpers provides a cushion for door knob and protects bulkhead. Door Bumper finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$5.95 - $6.95 / EACH
Overall Diameter: 1-7/8" · Height: 3/4" · Fastener Size: #6 · Weight: 0.13 lbs. · Part Number: 360110 / 222720

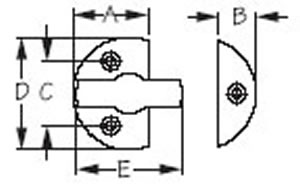

DOOR BUTTONS Spring loaded knob has nylon bottoms on underside to prevent scratching. Will not rattle. Door Buttons are finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$8.95 / EACH
Lockside Width (A): 1-3/16" · Catch Width (B): 1/2" · Lock Hole-to-Hole Center (C): 1" · Height (D): 1-3/4" · Knob Length (E): 1-11/16" · Fastener Size: #6 FH · Weight: 0.13 lbs. · Part Number: 222365 / 222360

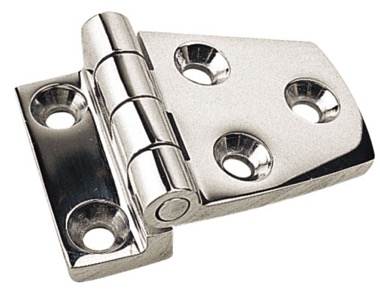

OFFSET DOOR HINGE This Sea-Dog Offset Door Hinge features one side with a 5/16" offset and is designed to be mounted on the front surface of a raised door. Constructed of 3/16" gauge corrosion resistant cast 316 stainless steel. Can be used in conjunction with Backing Plate (202539) for added strength and rigidity. Installs with five #10 FH fasteners (not included).

US$9.95 / EACH

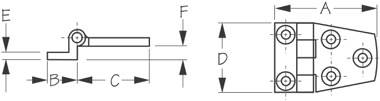

Overall Open Length (A): 2-1/8" · Offset Hinge Length: (B): 5/8" · Door Hinge Length: (C): 1-1/2" · Offset Hinge Width (D): 1-1/2" · Thickness (E): 3/16" · Offset Width (F): 5/16" · Fasteners: #10FH · Weight: 0.16 lbs. · Part Number: 205350

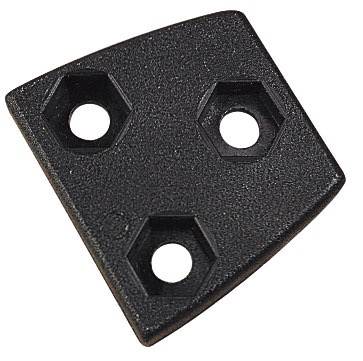

BACK PLATING FOR DOOR HINGE These Sea-Dog Backing Plates are ideal for use on thick hatch covers which may break when using nuts and washers alone. For use where more rigidity and strength are required. Constructed of UV resistant injection molded fiberglass nylon. Installs with three hex nuts. This part can be used with 202510, 202511, 202530, 202531, 205310 and 205350.

US$1.25 / EACH

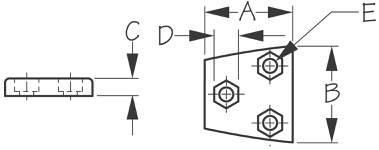

Length (A): 1-1/4" · Width: (B): 1-3/8" · Thickness: (C): 1/4" · Hexagonal Indention Width (D): 11/32" · Screwhole Circumference (E): 3/16"· Weight: 0.01 lbs. · Part Number: 202539
