Imtra Vertical Electric Windlasses on this webpage (FREE SHIPPING OVER $100*):
Lofrans Project 500 Vertical Electric Windlass 12V 500W or 700W
Lofrans Project 1000 Vertical Electric Windlass 12V 1000W
Lofrans Project 1500 Vertical Electric Windlass 12V or 24V 1200W or 1500W
Lofrans Project 2000 Vertical Electric Windlass 24V 2000W

LOFRANS VERTICAL ELECTRIC WINDLASSES FOR BOATS FROM 20-82 FEET Lofrans is recognized throughout the boating industry for quality engineering and rugged durability. All the components of a Lofrans windlass are designed and manufacturered specifically for the harsh marine environment. Mainshafts are made of AISI 431 Stainless Steel for durability. Vertical topworks are cast of marine-grade bronze and chrome-plated to a mirror finish.
NOTE: Recommendations for model selection by yacht length are intended for guidance purposes only. Actual selection should be made after consulting with competent engineers.
Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

For additional information, download the IMTRA Anchoring Systems Catalog and Chainwheel Chart.

Lofrans Vertical Electric Windlass Project 500

Click for larger image

Lofrans Project 500
Low Profile

Imtra Marine


Lofrans Vertical Electric Windlass Project 500

Click for larger image

Lofrans Project 500
Capstan
LOFRANS PROJECT 500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS 12V / 500W or 700W FOR BOATS UNDER 33 FT. The Lofrans Project 500 vertical windlass can handle setting a lunch hook or an all chain rode in a heavy squall with power to spare. Available with 500W or 700W motor. Capstan and Extra Deck Clearance options available. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

Standard Equipment:
  • Rope/chain management system
  • Watertight dual direction solenoid control box
  • Two (2) black covered footswitches
  • Clutch handle
  • Features:
  • Contemporary chrome finished topworks styling and smooth lines enhance the foredeck
  • Aft facing stainless pressure finger ensures smooth and trouble-free transition from rope to chain during retrieval and deployment
  • High ratio gearbox for fast retrieval
  • Stainless mainshaft
  • Stainless Worm drive sealed gearbox, Radially adjustable
  • Anodized aluminum gearbox housing
  • Bronze gears
  • Built in chainpipe
  • Mounting Hardare: Stainless Steel Studs, Washers, and Nuts
  • Neoprene deck gasket included
  • 2 year warranty
  • Specifications:
  • Vessel Length: under 33 ft (under 10 m)
  • Standard Deck Clearance: Min. 18mm / Max. 30mm (1-1/8")
  • Extended Deck Clearance (Option): up to 4-3/4"
  • Chain Size: 1/4" HT
  • Rope Size: 1/2"
  • Download for more information:
    Project 500 Product Sheet · Project 500 Owner's Manual

    LOFRANS PROJECT 500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 12V 500W MOTOR

    US$1,434.95 - $1,679.95 / EACH
  • Voltage: 12VDC
  • Motor: 500W: Dual Direction, Permanent Magnet
  • Power Rating: 850 lbs
  • Approx. Amp Draw: 30-60
  • Max Retrieval Speed: 65 ft/min
  • Chain Stripper: Stainless Steel
  • Manual Override: N/A
  • Weight: 22 lbs
  • Part Number: LW7901LP / LW7901 / LW7901LPXDC / LW7901XDC

  • LOFRANS PROJECT 500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 12V 700W MOTOR

    US$1,539.95 - $1,784.95 / EACH
  • Voltage: 12VDC
  • Motor: 700W: Dual Direction, Permanent Magnet
  • Power Rating: 950 lbs
  • Approx. Amp Draw: 35-70
  • Max Retrieval Speed: 65 ft/min
  • Chain Stripper: Stainless Steel
  • Manual Override: N/A
  • Weight: 25 lbs
  • Part Number: LW7911LP / LW7911 / LW7911LPXDC / LW7911XDC
  • Lofrans Vertical Electric Windlass Project 1000

    Click for larger image

    Lofrans Project 1000
    Low Profile

    Imtra Marine


    Lofrans Vertical Electric Windlass Project 1000

    Click for larger image

    Lofrans Project 1000
    Capstan
    LOFRANS PROJECT 1000 VERTICAL ELECTRIC WINDLASS 12V 1000W FOR BOATS 23-46 FT. The Lofrans Project 1000 vertical windlass is a robust, powerful rope/chain windlass capable of managing all chain rodes for bluewater cruisers and coastal cruisers alike. The Project 1000 features a high-torque series wound electric motor that delivers immediate lifting power and deployment speed. The Lofrans purpose built gearbox has a built in manual override system should an electrical problem arise. Lofrans provides a clutch/override handle to make clutch adjustments or to hand crank the ground tackle onboard in an emergency. The handsome luxury chrome finish will enhance the look of any vessel. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Standard Equipment:
  • Rope/chain management system
  • Watertight dual direction solenoid control box
  • Two (2) footswitches
  • Manual Override/Clutch handle
  • Locking Clutch Nut (Low-Profile version only)
  • Features:
  • Topworks Styling: Contemporary styling looks great on any foredeck
  • Chromed Bronze Topworks: Mirror-like finish is durable and corrosion resistant
  • Simplified Installation: Mainshaft and chainpipe holes are the same diameter and can be conveniently cut with hole saw
  • Finger Design: Aft-facing stainless pressure finger ensure a smooth trouble- free transition from rope to chain during deployment and retrieval
  • High-Speed Gearbox: 52:1 gearbox ratio retrieves the ground tackle at a more efficient speed
  • Payout Speed: 105 ft/min
  • One-Person Installation: The gearbox flange has a keylock to enable a single technician to mount the entire unit (most windlasses require one person above deck and one below during installation)
  • Stainless mainshaft
  • Stainless Worm drive gearbox, Radially adjustable
  • Anodized aluminum gearbox housing
  • Bronze gears
  • Built in chainpipe
  • Mounting Hardare: Stainless Steel Studs, Washers, and Nuts
  • Neoprene deck gasket included
  • 2 year warranty
  • Specifications:
  • Vessel Length: 23-46 ft (7-14 m)
  • Maximum Deck Thickness: 1-9/16" (4 cm)
  • Chain Size: 5/16" HT, 5/16" BBB
  • Rope Sizes: 9/16", 5/8"
  • Download for more information:
    Project 1000 Product Sheet · Project 1000 Owner's Manual

    LOFRANS PROJECT 1000 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 12V 1000W MOTOR

    US$2,064.95 - $2,344.95 / EACH
  • Voltage: 12VDC
  • Motor: 1000W: Dual Direction, Series Wound
  • Power Rating: 1450 lbs
  • Approx. Amp Draw: 70-110
  • Max Retrieval Speed: 78 ft/min
  • Chain Stripper: Stainless Steel
  • Manual Override: Standard
  • Weight: 45 lbs
  • Part Number: LW7921LP / LW7921 / LW7921LPXDC / LW7921XDC
  • Lofrans Vertical Electric Windlass Project 1500

    Click for larger image

    Lofrans Project 1500
    Low Profile

    Imtra Marine


    Lofrans Vertical Electric Windlass Project 1500

    Click for larger image

    Lofrans Project 1500
    Capstan
    LOFRANS PROJECT 1500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS 12V or 24V / 1200W or 1500W FOR BOATS 39-59 FT. The Lofrans Project 1500 is available with a variety of motor and gypsy combinations and low profile models feature Lofransí lockable clutch system. Available with 1200W or 1500W motor with 12V or 24V power supply. Capstan and Extra Deck Clearance options available. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Standard Equipment:
  • Watertight dual-direction control box
  • Two (2) heavy duty covered footswitches
  • Emergency override handle
  • Rope/chain gypsy
  • Neoprene deck gasket
  • Features:
  • Contemporary chrome finished topworks styling and smooth lines enhance the foredeck
  • Motor: Dual Direction, Series Wound
  • Gearbox: Stainless Worm Drive, Radially Adjustable
  • Bronze Gears
  • Stainless Mainshaft
  • Fixed Chainpipe
  • Stainless Steel Chain Stripper
  • Mounting Hardare: Stainless Steel Studs, Washers, and Nuts
  • Standard Manual Override
  • 2 year warranty
  • Specifications:
  • Vessel Length: under 39-59 ft (12-18 m)
  • Chain Size: 5/16" HT, 5/16" BBB, 3/8" HT, 7/16" HT
  • Rope Size: 5/8", 3/4" 3-strand nylon
  • Download for more information:
    Project 1500 Product Sheet · Project 1500 Owner's Manual

    LOFRANS PROJECT 1500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 12V 1200W MOTOR

    US$3,289.95 - $3,569.95 / EACH
  • Voltage: 12VDC
  • Motor: 1200W: Dual Direction, Permanent Magnet
  • Power Rating: 1700 lbs
  • Approx. Amp Draw: 80-120
  • Retrieval Speed: 52-72 ft/min
  • Weight: 62 lbs
  • Part Number: LW7941LP / LW7941 / LW7941LPXDC / LW7941XDC

  • LOFRANS PROJECT 1500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 12V 1500W MOTOR

    US$3,429.95 - $3,709.95 / EACH
  • Voltage: 12VDC
  • Motor: 1500W: Dual Direction, Series Wound
  • Power Rating: 2300 lbs
  • Approx. Amp Draw: 90-130
  • Retrieval Speed: 50-78 ft/min
  • Weight: 69 lbs
  • Part Number: LW7961LP / LW7961 / LW7961LPXDC / LW7961XDC

  • LOFRANS PROJECT 1500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 24V 1200W MOTOR

    US$3,359.95 - $3,639.95 / EACH
  • Voltage: 24VDC
  • Motor: 1200W: Dual Direction, Series Wound
  • Power Rating: 1700 lbs
  • Approx. Amp Draw: 50-70
  • Retrieval Speed: 52-72 ft/min
  • Weight: 62 lbs
  • Part Number: LW7941/1LP / LW7941/1 / LW7941LP/1XDC / LW7941/1XDC

  • LOFRANS PROJECT 1500 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 24V 1500W MOTOR

    US$3,499.95 - $3,779.95 / EACH
  • Voltage: 24VDC
  • Motor: 1500W: Dual Direction, Series Wound
  • Power Rating: 2300 lbs
  • Approx. Amp Draw: 50-80
  • Retrieval Speed: 59-78 ft/min
  • Weight: 69 lbs
  • Part Number: LW7961LP/1 / LW7961/1 / LW7961LPXDC / LW7911XDC
  • Lofrans Vertical Electric Windlass Project 2000

    Click for larger image

    Lofrans Project 2000
    Low Profile

    Imtra Marine

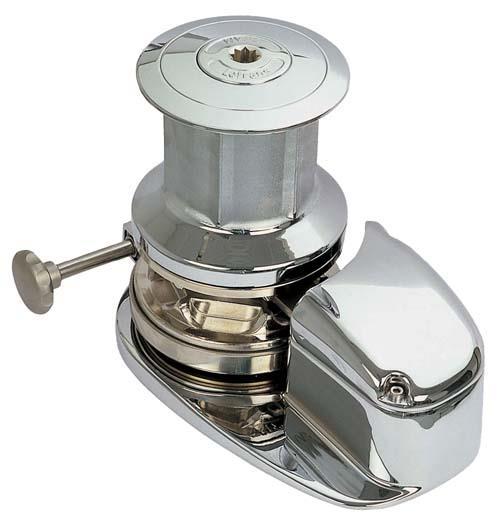

    Lofrans Vertical Electric Windlass Project 2000

    Click for larger image

    Lofrans Project 2000
    Capstan
    LOFRANS PROJECT 2000 VERTICAL ELECTRIC WINDLASS 12V 1000W FOR BOATS 59-82 FT. The Lofrans Project 2000 vertical all chain windlass is ideal for larger, bluewater yachts both new and classic. Capstan version handles 1/2"-3/4" rope. The handsome luxury chrome finish will enhance the look of any vessel. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Standard Equipment:
  • Two footswitches
  • Watertight control box
  • Clutch/manual operation handle
  • Brake band
  • Features:
  • Contemporary chrome finished topworks styling and smooth lines enhance the foredeck
  • Motor: Dual Direction, Series Wound
  • Gearbox: Stainless Worm Drive, Radially Adjustable
  • Bronze Gears
  • Stainless Mainshaft
  • Fixed Chainpipe
  • Stainless Steel Chain Stripper
  • Mounting Hardare: Stainless Steel Studs, Washers, and Nuts
  • Standard Manual Override
  • 2 year warranty
  • Specifications:
  • Vessel Length: under 59-82 ft (18-25 m)
  • Chain Size: 5/16", 3/8", 7/16", 1/2"
  • Rope Size (Capstan only): 1/2" - 3/4"
  • Download for more information:
    Project 2000 Product Sheet · Project 2000 Owner's Manual

    LOFRANS PROJECT 2000 VERTICAL ROPE/CHAIN ELECTRIC WINDLASS - 24V 2000W MOTOR

    US$8,049.95 / EACH
  • Voltage: 24VDC
  • Motor: 2000W: Dual Direction, Series Wound
  • Power Rating: 2800 lbs
  • Approx. Amp Draw: 90-110
  • Max Retrieval Speed: 78 ft/min
  • Chain Stripper: Stainless Steel
  • Manual Override: Standard
  • Weight: 159 lbs
  • Part Number: LW7977LP/1 / LW7977/1
