Bridle Plate Mooring & Storm Surge Anchor
Systems
|
|
|
|
|
Bridle Plate Mooring
& Storm Surge Anchor Systems on this webpage: |
 Click for larger image SailboatStuff |

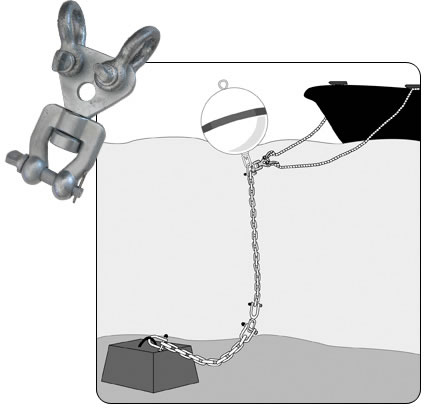

BRIDLE
PLATE MOORING SYSTEM BY TAYLOR MADE PRODUCTS Taylor
Made Products Bridle Plate Mooring attachment system that allows
up to three lines from the mooring to your boat. The system maintains
mooring line separation
to minimize chafe and increase line life. No more tangled mooring
lines! Two systems are available for multi-hulls (3 lines to boat)
or mono-hulls (2 lines to boat). Also available with safety shackles
and swivel that utilize nuts and cotter pins that eliminate the
need for wire seizing. For boats 25' - 60' in length and 8,000
lbs. SWL (Safe Working Load). Breaking strength 32,000 lbs.
The system
can use up to 1" lines with normal thimbles or 3/4" lines
with HD thimbles. Recommended attachment point is below the mooring
buoy. |
 Click for larger image SailboatStuff |
STORM
SURGE ANCHOR SYSTEM BY TAYLOR MADE PRODUCTS
Taylor Made Products Storm Surge Anchor System allows for the placement
of three anchors on a swivel and up to three lines back to the
boat. The boat can swivel on the anchors with- out getting anchor
chains
and lines twisted around each other. The minimum breaking strength
for this heavy-duty system is over 32,000 lbs. Safe Working Load
of 8,000 lbs. It comes complete with galvanized bridle plates,
shackles and a swivel. Also available with safety shackles and
swivel that utilize nuts and cotter pins that eliminate the need
for wire seizing. For boats 25'-60' in length. The system can
use up to 1"
lines with normal thimbles or 3/4" lines with HD thimbles.
3/8" HDG shackles are needed for attaching chain to the
system. Made in USA |
|
|
Made in USA
